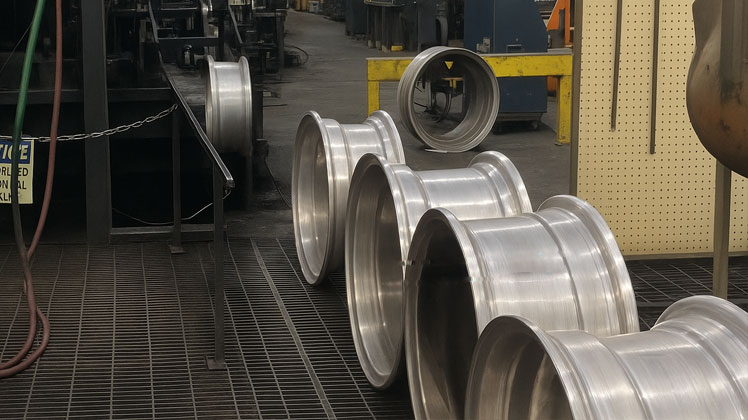

wheel_inspection
  • Gentex logo
  • RxSight logo
  • magna logo
  • clariant logo
  • 1800Accountant logo
  • Eptisa logo
  • Aptive logo
  • Save A Lot logo
  • TCS Transportation logo
  • Solid logo
  • Dareesoft logo
  • Petromin logo
  • CostaRicaABC logo
  • Fenice Energy logo
  • Linde logo
  • Cummins logo
  • Sammons Industrial logo
  • Mobile Maintenance logo
  • Link-X logo

Precision Wheel Inspection.
Zero Defects. Zero Downtime.

Intelgic’s AI-powered wheel inspection system delivers 100% automated defect detection for alloy and steel wheels — detecting cracks, scratches, porosity, coating issues, and dimensional anomalies with micron-level accuracy.

Micron-level defect detection (<50 µm)

360° inspection with multi-camera vision system

Robotic motion and AI-powered analysis

Real-time reporting with Digital Quality Certificates

Seamless integration with your automation line

Fully Automated Wheel Inspection System

Automotive wheels are critical structural components that directly impact vehicle performance, safety, and compliance. Whether they are made from steel, aluminum alloys, or other composite materials, manufacturing wheels demands extreme precision in dimensions, surface finish, and structural integrity.

Traditionally, wheel inspections have relied on manual visual checks or sampling-based quality control. However, manual inspection is time-consuming, inconsistent, and prone to human error—especially when defects are small, repetitive, or occur in hard-to-access areas.

To address these challenges, Intelgic provides a fully automated wheel inspection system powered by high-resolution machine vision cameras, precision lighting, robotic motion systems, and advanced AI software. The system ensures 100% quality control, detects even the tiniest defects, and improves overall production efficiency.

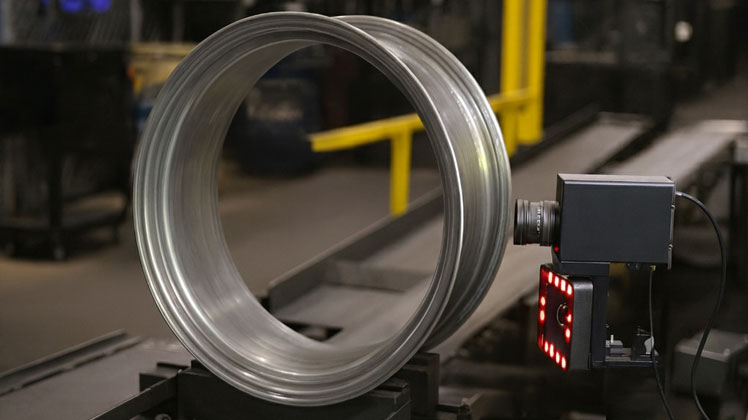

wheel_inspection

Types of Wheels Inspected

Aluminum Alloy Wheels (Cast or Forged)

Steel Wheels (Stamped or Welded)

Truck/Bus Rims

Motorcycle and Scooter Wheels

Electric Vehicle Lightweight Wheels

Common Defects Detected

Defect Type Description
Cracks & Fractures Hairline cracks in the hub, rim, or spokes
Surface Porosity Air bubbles or voids from casting
Scratches / Gouges Surface abrasions or tool marks
Coating Defects Paint peel-off, uneven powder coating, discoloration
Dents / Deformation Structural bends or warps from forging/machining
Hole Defects Missing, oversized, or misaligned bolt holes
Runout & Roundness Issues Geometric deformities affecting performance

Intelgic’s Automated Wheel Inspection Solution

Complete Turnkey System

  • High-resolution industrial cameras
  • Precision Optics
  • Robotic motion systems
  • Live Vision AI software
  • Integration with PLC, MES, or ERP systems

Inspection Coverage

Outer Rim & Barrel Scratches, dents, porosity, coating defects
Center Hub & Bore Surface cracks, machining defects
Bolt Holes Size, roundness, and positional accuracy
Inner Rim & Flanges Weld seam inspection, inner surface anomalies
Side Profile (Optional) Circular runout and geometric validation using laser

AI-Based Defect Detection

Intelgic’s proprietary Live Vision AI software powers the defect detection process. It includes:

Key Features

AI + Rule-Based Hybrid Defect Detection
Multiple camera configurations (top view, side view, angled view)
Robotic or motorized rotation system for 360° imaging
Micron-level defect detection (<50 µm possible)
Advanced reporting and analytics (shift-wise, defect trends)
Integration-ready with automation lines

Software Capabilities

Region-based inspection templates
Tolerance-based defect classification
Adaptive lighting control (per recipe)
AI model training for new wheel variants
Real-time pass/fail decisions
Image & defect report storage
REST API and cloud dashboard (optional)

Benefits of Intelgic’s Solution

100% inspection coverage

Reduced rework, returns, and warranty claims

Consistent inspection across shifts

Traceability with Digital Quality Certificates (DQC)

Scalable for different wheel sizes and designs

Remote support and AI retraining options

Optional Modules

Robotic Arm Integration

Automated wheel loading/unloading

Digital Quality Certificate

DQC generation for traceability

Cloud Dashboard

Remote inspection monitoring

Edge Computing

Cloud-based reporting analysis

Get Started with Intelgic

Whether you’re inspecting forged aluminum wheels or heavy-duty truck rims, Intelgic can build a customized, automated inspection system tailored to your production line and defect criteria.
