Automotive · Powertrain · Vision AI

Engine cylinder inspection — automated. accurate. AI-driven.

A turnkey automated inspection system to detect defects, measure geometry, and verify machining accuracy of engine cylinders — powered by machine vision, robotic motion, and AI.

Schedule a Demo Explore Capabilities
LIVE · CYLINDER INSPECTION
360° AI
engine cylinder inspection
Boreµm
RoundnessOK
Coverage100%
VerdictPASS
Trusted on the shop floor of
Gentex RxSight clariant 1800Accountant Aptive Save A Lot TCS Transportation Solid Dareesoft Petromin logo CostaRicaABC logo SunEdison logo Linde logo Cummins logo Sammons Industrial Mobile Maintenance Link X
001 · Overview

Fully automated inspection system for engine cylinders.

Engine cylinders are among the most critical components in internal combustion engines. Precision in surface quality, roundness, bore diameter, and concentricity directly impacts performance, fuel efficiency, and longevity.

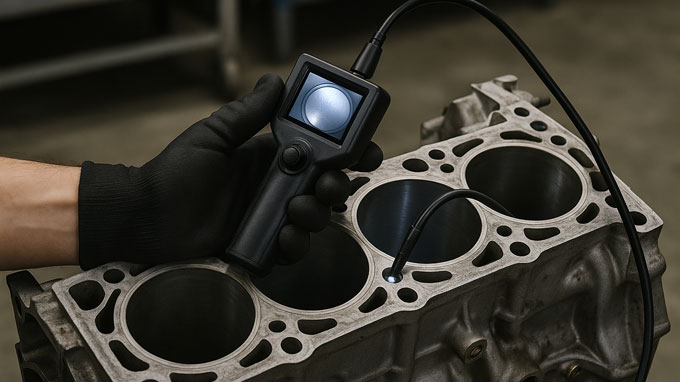

Manual inspection using gauges, borescopes, or sampling-based methods is not only slow and labor-intensive, but often fails to detect subtle defects or deviations in mass production. Intelgic solves this challenge with an AI-powered, fully automated cylinder inspection system that ensures 100% quality control — fast, consistent, and reliable.

002 · Inspection Scope

What Intelgic's system inspects.

Inspection Type
Details
Visual Defect Detection
Scratches, tool marks, dents, foreign particles, porosity
Bore Surface Inspection
Cross-hatch pattern analysis, inner wall defects using angled lighting
Geometric Measurements
Bore diameter, roundness, taper, concentricity (via vision + laser tools)
Edge & Chamfer Inspection
Burrs, incomplete machining, sharp edges
Crack Detection
AI-assisted crack detection in critical zones (valve seats, bore walls)
Part Presence / Orientation
Confirming port holes, notches, cavities, oil passages, etc.
003 · Components

Inspection system components.

CMP · 01

Imaging Hardware

  • ›High-resolution industrial cameras
  • ›Robotic arm or linear motion stage for rotation and multi-angle imaging
  • ›Specialized lighting (coaxial, low-angle, inner-bore dome lights, etc.)
  • ›Optional: laser triangulation or 3D profilers for dimensional checks
CMP · 02

AI Software (Certainty AI)

  • ›Region-wise inspection with tolerance settings
  • ›AI model training for variant-specific defect learning
  • ›Defect classification by type, size, severity
  • ›Real-time Pass/Fail logic
  • ›Image storage and inspection traceability
CMP · 03

Automation & Integration

  • ›Robotic loader/unloader (optional)
  • ›Triggering via PLC or barcode scanning
  • ›Integration with MES/ERP systems
  • ›Optional Digital Quality Certificate (DQC) generation
004 · Process

Inspection process flow.

01 STEP

Loading

Cylinder is loaded manually or by robot onto the inspection fixture or rotating stage

02 STEP

Positioning

Imaging devices move into position or rotate the cylinder for 360° coverage

03 STEP

Imaging

High-res cameras + lights capture all critical surfaces (bore, flange, side, threads)

04 STEP

Processing

AI analyzes images in real-time to detect defects or deviations

05 STEP

Reporting

Generates visual reports and optionally DQC for each part

06 STEP

Sorting

Defective parts can be automatically segregated (if integrated with robots)

005 · Coverage

Supported cylinder types.

TYPE · 01

Automotive engine blocks (cast iron, aluminum)

TYPE · 02

Single engine cylinder sleeves and liners

TYPE · 03

Motorcycle, marine, and diesel engine cylinders

TYPE · 04

Hydraulic and pneumatic cylinder housings

006 · Benefits

Key benefits.

BEN · 01

Micron-level defect detection and measurement

BEN · 02

AI-driven decision making — real-time, consistent, repeatable

BEN · 03

Supports variant switching via inspection recipes

BEN · 04

Full digital record for traceability and audits

BEN · 05

High-speed, inline or offline operation

BEN · 06

Custom lighting setups for inner surface visualization

007 · Modules

Optional modules.

MOD · 01

Advanced Analytics Dashboard

Analyze trends, defect rates, shift-wise data, cycle time and more.

MOD · 02

Digital Quality Certificate (DQC)

Auto-generate compliance records with part images and inspection metadata.

MOD · 03

Cloud or On-Prem Reporting

Choose based on your IT infrastructure and security needs.

MOD · 04

Robotic Loading/Unloading System

For hands-free 24/7 operation in high-volume production lines.

008 · Industries

Industries served.

IND · 01

Automotive OEMs & Tier 1 suppliers

IND · 02

Engine and powertrain component manufacturers

IND · 03

Marine, aviation, and diesel engine part makers

IND · 04

Heavy equipment and off-road vehicle manufacturers

009 · Get in Touch

Get in touch.

Intelgic's engine cylinder inspection system is custom-engineered to match your part geometry, defect criteria, inspection speed, and automation goals.

Talk to our experts today to schedule a demo or share your inspection requirements.
