Sports Turf Quality Inspection

Line-scan vision by Intelgic.

Inspect every inch. Catch every defect.

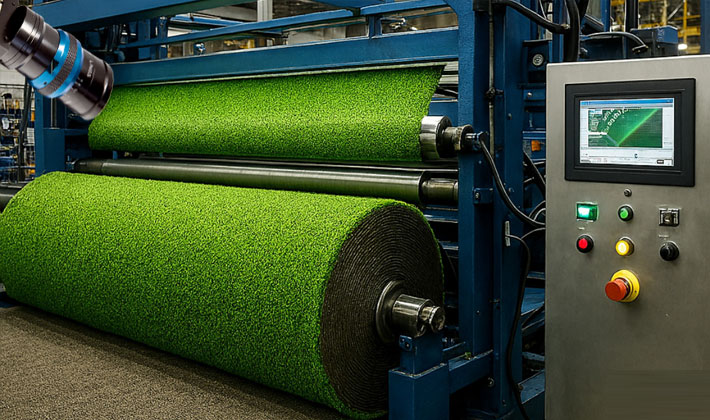

Automated, real-time inspection of long sports-turf rolls (up to 20+ ft) as they run on your conveyor — powered by Intelgic's line-scan imaging and AI defect analytics.

Talk to an Expert Explore Features

LIVE · LINE-SCAN 01

ROLL #TR-204 OK

Length20+ ft

Min Defect0.5 mm

Detection>95%

VerdictPASS

>95%

Defect Detection

50–60%

Rework Reduction

100%

Roll Map Traceability

20+ft

Continuous Roll Length

001 · Why Intelgic

Why turf manufacturers choose Intelgic.

Continuous line-scan, AI defect classification, and operator-friendly tools — built for the realities of high-throughput turf production.

REASON · 01

100% Inspection with Consistency

Continuous line-scan imaging ensures no blind spots.

REASON · 02

Stitching & Texture Accuracy

Detect micro-defects that manual inspection misses.

REASON · 03

Real-Time Feedback

Flag issues instantly; reduce rework and scrap.

REASON · 04

Operator-Friendly

Live dashboard, roll maps, and one-click reports.

REASON · 05

Seamless Integration

Connect to PLC/MES for alarms, mark-and-sort, and traceability.

002 · Defects

What it catches out-of-the-box.

Pre-trained defect classes covering the most common quality concerns in synthetic sports turf production.

DEFECT · 01

Stitching Defects

Gaps, missed/misaligned stitches.

DEFECT · 02

Fiber Pattern Issues

Deviations and uneven pile distribution.

DEFECT · 03

Color Variation

Shade variation & banding.

DEFECT · 04

Contaminants

Foreign threads, debris.

DEFECT · 05

Edge Defects

Frays and loose ends.

DEFECT · 06

Surface Blemishes

Scuffs, burn or rub marks.

003 · Process

How it works.

Continuous synchronized imaging, controlled illumination, and on-edge AI inference — all wrapped in actionable QA outputs.

Continuous Imaging

As turf moves on the conveyor, a line-scan camera captures high-resolution lines synchronized to belt speed, reconstructing a seamless full-width image of the entire roll.

Uniform Illumination

Specialized line illumination ensures stable, glare-controlled lighting — essential for detecting stitching, shade variation, and texture anomalies.

AI Inspection in Real Time

Intelgic's Certainty AI analyzes each frame on a GPU PC to detect, classify, and localize defects with pixel-level precision.

Actionable Output

Trigger alarms/markers, visualize defect coordinates on the Roll Map, and auto-generate batch/roll reports for QA and traceability.

004 · Features

Key features.

Production-grade capabilities engineered for continuous operation across SKUs, line speeds, and shift patterns.

Full-Surface Coverage

Inspect long and wide rolls without sampling.

High-Speed Compatible

Tuned for fast conveyors and variable speeds.

Recipe Management

Different SKUs/designs with independent thresholds and ROIs.

Defect Roll Map

Visual heatmap with exact position, length, and severity.

One-Click Reports

PDF/CSV exports; per-roll, per-shift, per-batch.

Integration Hooks

PLC I/O, OPC/REST APIs for MES/ERP connectivity.

Pass/Fail & Class-wise Counts

Production-ready metrics at a glance.

Low-Maintenance

Rugged optics, dust shields, and auto-calibration routines.

005 · Components

System components (turnkey).

A complete, integrated package — optics, illumination, compute, sync, software, and I/O.

Line-Scan Camera

Area equivalent up to multi-MP across width.

Line Illumination

Uniform, flicker-free lighting module.

Industrial GPU PC

Edge processing for 24/7 operation.

Operator HMI

Touchscreen interface (optional).

Precision Lens + Filters

Glare control, contrast enhancement.

Encoder/Conveyor Sync

Accurate pixel-to-length mapping.

Certainty AI Software

Inspection, analytics, reporting.

I/O Panel

Alarms, stack light, optional defect marker.

Note: Intelgic supplies all mounting hardware, cable trays, and protection enclosures as part of the turnkey package.

006 · Specs

Technical specifications (typical).

Configurations are sized to your conveyor speed, roll width, and target defect resolution.

Roll Dimensions

10–20+ ft (continuous)

Field Width

Configurable (single or multi-camera tiling)

Conveyor Speed

5–20 m/min (application-dependent)

Resolution

Tuned to defect size (as low as 0.5 mm to 2 mm detectable)

Lighting

High-uniformity line light with intensity control

Data Output

PDF/CSV reports, REST/OPC, SQL/NoSQL storage

007 · Software

Certainty AI — dashboard & analytics.

Operator views, roll maps, trends, recipe control, and digital quality certificates — all in one place.

Live View + Overlays

See defects as they're found.

Roll Map Viewer

Navigate by length and width; jump to imagery.

Trend Analytics

Shift/batch trends, top defect classes, Pareto.

Recipe/Threshold Control

Secure roles & permissions.

Digital Quality Certificate

Attach inspection evidence to each roll.

008 · Integration

Integration & workflow.

Plug into your plant's PLC, MES, ERP, and BI infrastructure with first-class connectors.

INTEGRATION · 01

PLC Integration

✓Alarms & triggers
✓Reject/marking controls
✓Line interlocks

INTEGRATION · 02

MES/ERP Connectivity

✓Roll ID synchronization
✓Batch records
✓Production orders

INTEGRATION · 03

Data Lake / BI

✓Data Lake exports
✓Plant-wide BI integration
✓Continuous improvement metrics

009 · FAQ

Frequently asked questions.

Common questions about line-scan vision deployments for sports turf production lines.

Do you use IR or 3D sensors?

No. The system is designed to achieve full inspection performance using optical line-scan imaging and controlled lighting only.

Can it keep up with our fastest line?

Yes. We size camera line rate, illumination, and GPU to your conveyor speed and desired defect size.

What about different turf SKUs and colors?

Use recipes: each SKU gets tuned thresholds, ROIs, color references, and defect classes.

How do we trace defects back to production?

Each roll gets a unique ID and a Roll Map with coordinates, timestamps, and images — pushed to MES/ERP if required.

What's the typical installation time?

Most retrofits complete within a short planned maintenance window; mechanical readiness and cable routing influence the schedule.

Get Started

Ready to upgrade your turf QA?

Let's review your conveyor specs, target defects, and desired detection limits. We'll propose camera/lighting selections, a layout drawing, and a deployment plan.
