Integrating Vision AI into Existing Automotive Production Lines

Published on: Jul 16, 2025

Introduction

Automotive manufacturers and suppliers are under increasing pressure to deliver high-quality parts at high speeds while maintaining traceability, reducing labor costs, and meeting strict OEM quality standards. One of the most impactful technologies in achieving these goals is Vision AI—a combination of machine vision, smart lighting, and artificial intelligence models that inspect, measure, and verify parts in real time.

However, many production facilities still operate legacy systems or manually supervised lines that were never designed for automated inspection. This raises a critical question: Can Vision AI be retrofitted into existing automotive production lines?

The answer is yes—and Intelgic provides the tools, hardware, and expertise to make it happen without disrupting your manufacturing operations.

Why Integrate Vision AI into Existing Lines?

Quality Consistency

Manual inspection is inconsistent across shifts and prone to human error. Vision AI ensures uniform detection standards 24/7.

Customer Satisfaction

By catching defects early, you reduce the risk of rework, warranty claims, and product recalls.

Cost Efficiency

Automating inspection reduces labor costs while increasing first-pass yield.

Compliance & Traceability

Vision systems enable part-wise digital records of inspections, essential for audits and regulatory compliance.

Common Constraints in Legacy Production Lines

Before integration, it’s important to understand the constraints of traditional setups:

• No space for cameras or lighting

• Uncontrolled part positioning and orientation

• No triggers for image capture

• Lack of synchronization with PLC or MES

• No inspection zones designed into conveyor systems


Intelgic’s approach is to overcome these challenges with modular and adaptable components.

Intelgic’s Vision AI Integration Framework

Intelgic uses a flexible integration strategy that includes:

1. Modular Hardware Architecture

• Compact area scan cameras can be mounted in tight spaces.

• Lighting enclosures can isolate ambient light without affecting production flow.

• Custom mounts and brackets are used to position cameras in optimal FOVs.


2. Camera and Lighting Integration

• Retrofits include industrial LED lighting (coaxial, dome, or dark field) customized for the part’s surface and color.

• Telecentric lenses are added for high-accuracy dimensional inspections.

• The entire setup is optimized to work within existing workstations, conveyors, or robotic arms.


3. Motion Synchronization

• Intelgic integrates encoders, photoelectric sensors, or existing robot signals to trigger cameras precisely as the part arrives in the inspection area.

• Where necessary, robotic rails or gantry systems are added to move the camera or the part for 360° imaging.


4. AI-Powered Inspection Software

Intelgic’s Live Vision AI software supports:

• Real-time detection of scratches, pinholes, color mismatches, and contaminations.

• Component presence verification and positional accuracy.

• Pass/Fail logic based on custom acceptance criteria.

• Easy retraining for new parts and defect classes.


5. System Integration

• Seamlessly connects with PLC/SCADA systems to exchange inspection signals.

• Data is sent to MES or cloud platforms for:

  • Defect analytics

  • Production dashboards

  • Traceability and audit reports

Robotic Motion Systems and Conveyor Line Customization for Complex Part Inspection

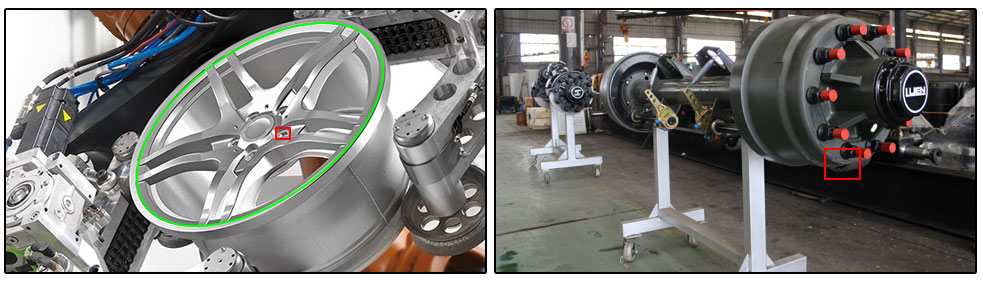

While many automotive parts can be inspected with static camera setups, complex components—such as alloy wheels, axle assemblies, or multi-surface castings—require dynamic inspection from multiple angles. In these scenarios, Intelgic deploys automated robotic motion systems that are tightly integrated with the existing conveyor infrastructure.

 Why Robotic Motion is Needed

• Parts like alloy wheels, engine cradles, or suspension arms have curved, internal, and undercut surfaces.

• To inspect these surfaces fully, the camera must capture the part from top, bottom, and side angles.

• A rotating stage or robotic axis system allows controlled part manipulation during inspection, ensuring no defect is missed.

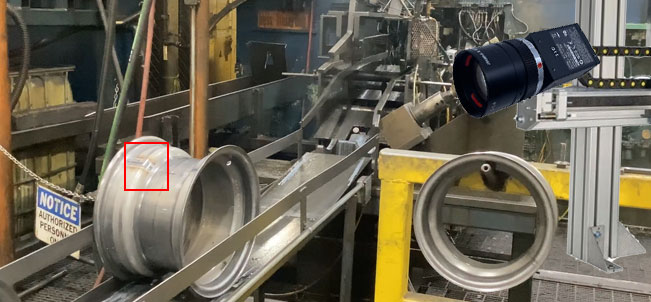

Conveyor Line Customization

To accommodate such advanced inspection requirements, existing conveyor lines often need minor but strategic customization, such as:

• Integrating rotating platforms or turntables for part orientation.

• Adding inspection zones with controlled lighting and part isolation.

• Installing lift-and-locate stations for precise part alignment under the camera.

• Introducing robotic arms or gantry systems that move around the part while the conveyor is paused or indexed.


 Example: Alloy Wheel Inspection

• A rotating stage is mounted within the conveyor flow.

• As the wheel reaches the inspection station, it is:

  • Lifted and rotated for 360° side-wall and inner-rim inspection.

  • Imaged from above for surface and center bore defects.

  • Optionally flipped for bottom face inspection.

• Intelgic’s AI analyzes each image to detect:

  • Surface scratches, casting defects, burrs, and coating flaws.


Integration and Synchronization

• The robotic motion system is synchronized with PLC signals and camera triggering to ensure:

  • Accurate image capture at each orientation.

  • Minimal disruption to the overall line speed.


Seamless coordination between part motion and AI inspection software.

Step-by-Step Integration Process

Successfully integrating a Vision AI system into an existing automotive production line requires careful planning, customization, and collaboration between automation engineers, quality teams, and system integrators. Below is Intelgic’s proven step-by-step process to ensure a smooth and effective deployment:

1. Site Survey and Requirement Analysis

• Intelgic’s engineering team visits the production site to assess the current infrastructure.

• Key parameters are documented:

  • Available space around the conveyor or workstations.

  • Type and variety of parts to be inspected.

  • Lighting conditions and ambient interferences.

  • Existing automation and control systems (PLC, SCADA, MES).

• Inspection requirements (types of defects, tolerances, throughput rate) are gathered from quality teams.


2. Solution Design and Component Selection

• A custom inspection architecture is designed based on the survey findings.

• Selection of:

  • Cameras (area scan, line scan, 3D) based on resolution and coverage needs.

  • Lenses and lighting suitable for surface characteristics and defect types.

  • Mounting mechanisms, including fixed brackets, robotic arms, or linear actuators.

  • Optional components like barcode readers, rotating stages, or enclosures.

• Integration points with the existing line are defined.


3. Mechanical and Electrical Integration Planning

• CAD layouts are created showing how the Vision AI system will fit into the current production line.

• Mechanical mounts, sensor triggers, and cable routing are planned.

• Interfaces with existing PLC or control panels are mapped for:

  • Start/stop signals.

  • Part presence detection.

  • Result communication (PASS/FAIL outputs).


 4. Installation and Hardware Setup

• The system is installed during scheduled downtime or maintenance windows to minimize disruption.

• Cameras and lights are mounted at designated positions.

• Motion systems (robotic arms, rails, or rotating stages) are installed if required.

• All components are tested for mechanical stability, power, and network connectivity.


5. Calibration and Imaging Optimization

• Cameras are calibrated for focus, field of view, and working distance.

• Lighting is tuned to eliminate shadows, glare, or uneven illumination.

• Triggers and timing mechanisms are tested to ensure perfect synchronization between part position and image capture.

• Golden sample parts are used to fine-tune exposure, contrast, and sharpness settings.


 6. AI Model Training and Software Configuration

• Sample defect images are collected from actual parts.

• Intelgic’s AI software is trained to detect:

  • Surface defects (scratches, pinholes, dents, stains).

  • Component presence and alignment.

  • Color consistency and coating flaws.

• Acceptance thresholds and defect severity levels are configured as per customer specifications.

• System learns to distinguish between true defects and harmless visual variations.


 7. Testing, Validation, and Optimization

• The system is tested under real production conditions for a defined period (pilot run).

• Accuracy, false positives, and false negatives are monitored.

• Parameters are refined to improve detection performance.

• Final inspection results are reviewed with the customer’s quality and operations team.


8. Go-Live and Production Rollout

• Once validated, the system goes live on the production floor.

• Integration with MES or cloud dashboards is activated for logging, traceability, and analytics.

• Operators and maintenance teams are trained on system operation, alerts, and changeovers.


Intelgic provides ongoing support for tuning, model updates, and expansion to other parts or stations.

Case Examples

Example 1: Painted Part Inspection on Conveyor

• Legacy line lacked inspection capability.

• Intelgic added side-view and top-view cameras with dome lighting in a compact enclosure.

• AI detected paint defects, scratches, and color mismatch at 200 parts/hour.


 Example 2: Weld Assembly Verification

• Parts were previously checked manually.

• Robotic arm was equipped with Intelgic’s vision system.

• AI verified weld quality, missing brackets, and position of spot welds.


Rejection data was logged and synchronized with MES.

Benefits of Retrofitting Vision AI

Benefit	Impact
Non-Invasive Upgrade	Minimal downtime and disruption
Future-Proofing	Easily adaptable to new SKUs and parts
Scalable Deployment	Roll out across multiple stations or plants
Short ROI Cycle	Typically within 6–12 months
Full Traceability	Inspection history tied to part IDs or barcodes



Integrating Vision AI into existing automotive production lines is not only feasible—it’s a strategic imperative for manufacturers looking to stay competitive in a quality-driven market. Intelgic’s modular, intelligent, and production-ready solution ensures that legacy systems can benefit from the power of AI-based inspection without costly redesigns.

From hardware to AI software, motion systems to integration with factory control systems—Intelgic delivers a turnkey inspection automation solution tailored for real-world automotive manufacturing environments.
