AI-Driven Accuracy for Wiring, Assembly, and Component-Level Quality Control
Electrical control panels are the backbone of modern automation—powering machines, controlling industrial processes, and ensuring safe operations across factories. Yet, the complexity of wiring, component placement, and intricate connections makes manual inspection slow, inconsistent, and prone to oversight. A single missing component or a mis-routed cable can lead to severe operational hazards, equipment failures, and expensive downtime.
Intelgic’s Region-Based Electrical Control Panel Box Inspection System brings precision, repeatability, and real-time intelligence into the panel-building workflow. Using advanced industrial cameras, adaptive lighting, AI-powered image analysis, and region-based inspection logic, Intelgic ensures every area of the panel is inspected with micrometer-level detail.
What is Region-Based Inspection?
Control panels are complex, with dozens or even hundreds of components:
Region-Based Inspection divides the control panel into logical zones (ROIs – Regions of Interest). Each ROI represents a specific area, component group, or wiring section. Intelgic’s AI examines each region independently with targeted rules, thresholds, and expected parameters.
This dramatically increases inspection accuracy, enabling the system to:
- Detect component-level defects
- Validate assembly sequence and wiring layout
- Confirm correct presence, orientation, and color
- Identify mismatches between design vs. actual build
- Catch human errors early in the assembly process
Why Region-Based Inspection is Essential for Control Panels
High Component Density
Even small panels may contain 200+ wires and dozens of components. Inspecting every detail manually is time-consuming and often unreliable.
Wiring Complexity
Wrong wire routing, loose connections, incorrect wire colors, or swapped terminals can cause safety issues or system failures.
Variation Across Panel Types
Different customers and applications require different layouts. Region segmentation allows custom recipes for each panel model.
Safety and Compliance
Panels for medical, pharmaceutical, automotive, and industrial use must meet strict standards.
Zero-Defect Manufacturing
As factories shift to digital quality standards, automated optical inspection becomes a necessity—not an option.
Intelgic’s Region-Based Panel Inspection System
Intelgic provides a complete, turnkey solution:

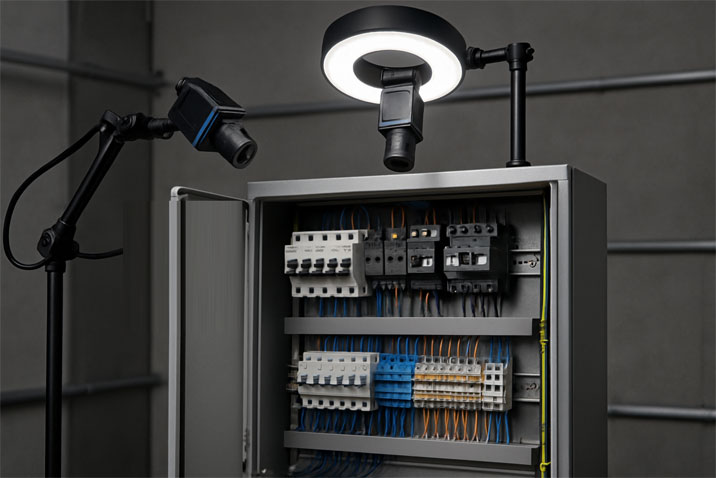

1. High-Resolution Imaging System
-
Industrial area-scan cameras
-
Multi-camera setup for wide panels
-
Optimal lighting (ring light, bar light, coaxial, low-angle)
-
Motorized or fixed camera rigs for full coverage
This ensures crisp imaging of even the smallest wires, screw heads, and serial markings.
2. Region Segmentation & Hierarchical Zones
The panel is automatically divided into zones such as:
Each region is associated with:
- Expected components
- Expected wire colors and counts
- Expected positions
- Orientation rules
- Assembly order
- Tolerance thresholds
3. AI-Powered Detection, Tracking, and Validation
Intelgic’s Live Vision AI inspects each region to validate:
Presence & Absence
- Relay missing
- Terminal block not installed
- Connector absent
- Screw missing
Safety Checks
- Improper clearance between high-voltage components
- Excess wire bending or sharp bends
- Missing grounding wire
- Insulation issues
Placement Accuracy
- Component orientation
- Alignment errors
- Position shift beyond tolerance
Wiring Validation
- Wrong terminal connection
- Loose wire
- Wire not inserted fully
- Wrong wire color
- Wrong wire number label
- Crossed or tangled wires
- Missing ferrules
Component Identification
AI reads:
- Label plates
- Engraving
- Barcodes
- Terminal numbers
- Serial numbers

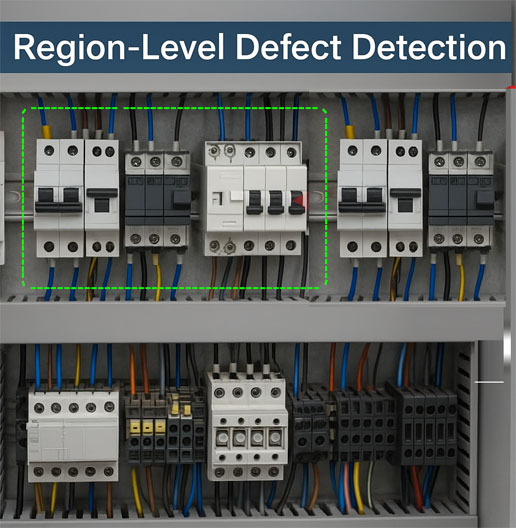

4. Region-Level Defect Detection
Each region has targeted defect detection algorithms such as:
-
OCR for labels & numbers
-
Color analysis for wire color verification
-
Design pattern matching for components
-
Object counting for terminal blocks or relays
-
AI-driven anomaly detection for wiring routes
-
Edge and contour matching for correct placement
Intelgic’s solution is engineered to catch defects at the micro-level that are often invisible to the human eye.
5. Real-Time Inspection Workflow
Panel Imaging
Cameras capture high-resolution images of the entire panel or regions.
Region Mapping
System loads the recipe (design/spec) for the specific panel type.
AI Analysis
Live Vision AI analyzes each region independently.
Pass/Fail Decision
If any critical region fails, the entire panel is flagged.
Visual Defect Report
The system highlights exact region, type of defect, severity, and recommended corrective action.
Digital Quality Certificate (DQC)
For passed panels, Intelgic automatically generates a Digital Quality Certificate with full traceability.
Use Cases in Control Panel Manufacturing
Automotive
Electrical panel assembly for vehicle production lines and testing equipment
Medical
Pharma & medical equipment control panels requiring critical reliability
Power Distribution
Main power distribution boards and switchgear assemblies
Machine OEM
Control panels for industrial machinery and equipment
HVAC
Heating, ventilation and air conditioning control panels
Elevators
Elevator/escalator control boards with strict safety requirements
Robotics
Automation control cabinets for robotic systems
Renewable Energy
Inverter panels for solar and wind power systems
Advantages of Intelgic’s Region-Based Approach
Higher Accuracy
AI detects small deviations human operators often miss.
Faster Production
Inspection time drops from minutes to seconds.
Reduced Human Error
Eliminates fatigue, oversight, and inconsistency.
Full Traceability
Image data + inspection reports stored automatically.
Recipe-Based Workflow
Supports multiple panel designs across production lines.
Integration with MES/ERP/PLC
Automates quality documentation, QC approvals, and rework loops.
Cloud Dashboard
Shift-wise analysis, defect trends, panel-wise reports, and audit history.
Advantages of Intelgic's Region-Based Approach
Higher Accuracy
AI detects small deviations human operators often miss.
Faster Production
Inspection time drops from minutes to seconds.
Reduced Human Error
Eliminates fatigue, oversight, and inconsistency.
Full Traceability
Image data + inspection reports stored automatically.
Recipe-Based Workflow
Supports multiple panel designs across production lines.
Region-Based Electrical Control Panel Box Inspection is the future of zero-defect electrical assembly. With growing complexity in wiring, multi-vendor components, and global quality expectations, automated inspection is becoming essential.
Intelgic’s AI-driven system offers unmatched precision, real-time analysis, and intelligent defect detection—ensuring every control panel shipped to your customers adheres to the highest quality and safety standards.
If you are building electrical panels, Intelgic brings you the technology to deliver world-class quality with every build.
