Metal Tube Outer Surface Inspection Automation
Published on: Oct 29, 2025
Written by:Content team, Intelgic
AI-Powered Automated Inspection for Defect-Free Tube Production
In metal tube and pipe manufacturing, the outer surface quality is a critical factor that defines product reliability, appearance, and performance. However, most manufacturers still rely on manual visual inspection to identify defects on the outer surface of tubes — a process that is inconsistent, time-consuming, and prone to human error.
During the tube forming, welding, and cooling processes, various types of surface defects such as scratches, cut marks, splits, dents, cracks, and surface irregularities can occur. These defects often escape human detection, leading to rework, scrap, and customer dissatisfaction.
To address this challenge, Intelgic offers a comprehensive AI-powered Metal Tube Outer Surface Inspection System, designed to deliver 100% surface coverage, real-time detection, and consistent inspection results directly on the production line.
Challenges in Manual Surface Inspection
Manual inspection of metal tubes presents several limitations:
Operator dependency
Accuracy varies from person to person and shift to shift.
Fatigue and human error
Continuous inspection of fast-moving tubes is impractical.
Inconsistent lighting conditions
Reflections from the metallic surface make visual judgment unreliable.
Incomplete coverage
Manual inspection rarely provides 360° surface visibility.
Slow throughput
Manual checks delay the production line and reduce output.
As tube diameters, surface finishes, and production speeds vary, maintaining inspection consistency becomes almost impossible without automation.

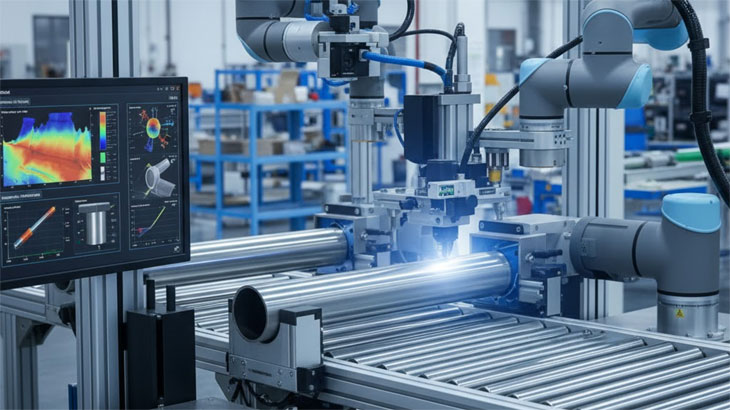

Intelgic's Automated Outer Surface Inspection System
Intelgic’s AI-driven tunnel-based inspection solution revolutionizes how tube manufacturers monitor surface quality. The system uses industrial-grade cameras, precision lenses, specialized lighting, and advanced AI algorithms to inspect the entire circumference of each tube — automatically and in real time.
The system can be installed immediately after the tube forming and cooling process, ensuring that any defect is detected before further processing or dispatch.
1. Tunnel-Based Imaging Architecture

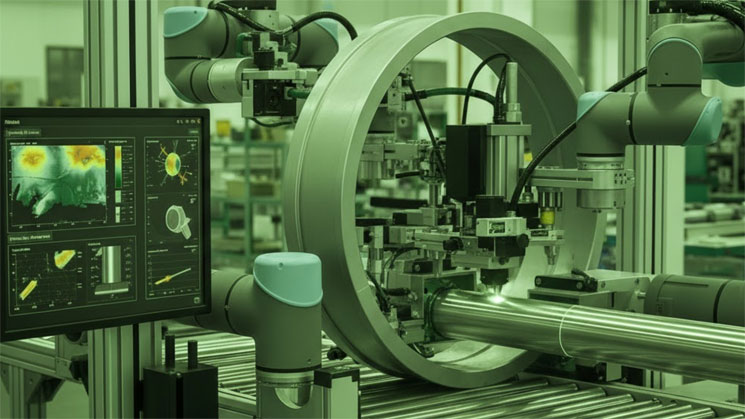

Intelgic designs a custom tunnel-type inspection enclosure that houses multiple high-resolution industrial cameras and synchronized lighting modules.
Key design features:
- 360° coverage: Cameras are strategically positioned around the tunnel to capture the complete outer surface.
- Adaptable to tube size: Tunnel diameter and camera positions are customizable for different tube diameters and line speeds.
- Controlled illumination: Specialized lighting (bar lights, dome lights, or low-angle lights) minimizes glare and enhances defect visibility even on reflective metallic surfaces.
- Vibration-resistant mountings: Ensures image stability and clarity even at high production speeds.
As the tube passes through the tunnel, synchronized imaging ensures continuous, overlap-free visual data of the tube surface.
2. AI-Based Defect Detection and Processing
Captured images are analyzed in real time by Intelgic's Live Vision AI software — a robust image-processing and AI-powered defect detection system.
- Detection of cut marks, scratches, splits, cracks, dents, and discoloration.
- Real-time image stitching to reconstruct the full tube surface.
- Adaptive learning algorithms that automatically improve detection accuracy over time.
- Measurement and localization of each defect along the tube's length.
- Integration with PLC and MES systems for automation and traceability.
The AI software classifies each tube as Pass or Fail based on defined quality criteria and generates digital inspection reports for traceability.
3. Automated Marking System
Intelgic's solution includes an automated marking system that physically marks defective areas on the tube.
Working principle:
- When a defect is detected, the AI software calculates its exact longitudinal position on the tube.
- This position data is transmitted to the marking controller.
- As the tube continues to move on the line, a motorized marking head (inkjet, paint, or mechanical marker) automatically marks the location of the defect on the tube's outer wall.
- This allows operators to easily identify the defective sections for further action such as rework, trimming, or rejection.
4. Control Panel and System Integration
The entire inspection and marking process is managed through a central control panel box, which coordinates all hardware and software operations.
Features include:
- Camera, lighting, and marking synchronization.
- PLC interface for line control and defect signal communication.
- User-friendly HMI for monitoring inspection in real time.
- Data storage for quality analytics and reporting.
The control system ensures full automation — from image capture to marking — without operator intervention.
Complete Turnkey Solution
Intelgic delivers a complete, ready-to-deploy inspection ecosystem, including:
This turnkey approach ensures seamless integration into any production line and guarantees consistent quality inspection performance.
Key Advantages
Applications
Intelgic's Metal Tube Outer Surface Inspection System is ideal for:
Any industry where surface finish, dimensional accuracy, and quality consistency are critical can benefit from this technology.
Conclusion
Surface inspection is vital to ensure the performance, reliability, and aesthetics of metal tubes. Manual inspection cannot meet today's demand for precision and throughput.
Intelgic's AI-driven Outer Surface Inspection System provides a non-contact, high-speed, and fully automated solution that detects defects with unmatched accuracy.
By integrating advanced imaging, AI software, and automated marking in a unified system, Intelgic enables manufacturers to achieve Zero Defect Manufacturing and deliver consistent, high-quality tubes to their customers.
