Replacing CMM with Laser Profile Sensors for Automated Measurement Inspection
Published on: Mar 16, 2026
Written by:Content team, Intelgic
Dimensional inspection is a critical process in manufacturing industries such as automotive, aerospace, metal fabrication, electronics, and precision engineering. For decades, Coordinate Measuring Machines (CMM) have been the standard solution for high-precision dimensional inspection.
While CMM machines offer excellent accuracy, they often introduce significant limitations in modern high-speed manufacturing environments. Inspection is usually slow, requires skilled operators, and cannot easily be integrated directly into production lines.
To overcome these challenges, many manufacturers are now adopting laser profile sensor-based automated inspection systems. These systems enable high-speed, non-contact measurement directly on the production line, dramatically improving productivity and inspection coverage.
Intelgic provides laser profiler–based automated measurement inspection systems that can replace or complement traditional CMM processes in many industrial applications.
Limitations of Traditional CMM Inspection
Coordinate Measuring Machines are widely used for dimensional measurement, but they come with several operational challenges in modern production environments.
Some common limitations include:
Because of these limitations, manufacturers often inspect only a few samples from each batch, which increases the risk of defective parts passing through production.
Laser Profile Sensors: A Modern Alternative

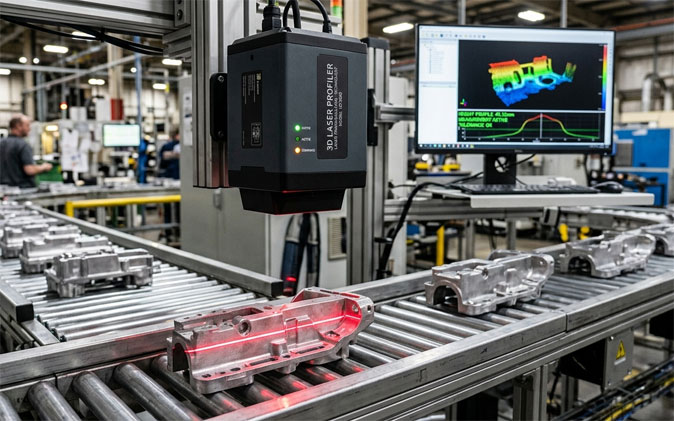

Laser profile sensors, also known as 3D laser profilers, use laser triangulation technology to measure the shape and dimensions of objects with high accuracy.
A laser line is projected onto the surface of the object, and a high-speed camera captures the reflected light. Using triangulation algorithms, the system calculates the precise height and profile of the object, generating a 3D point cloud of the surface.
This technology allows manufacturers to perform high-speed dimensional inspection without physical contact with the part.
Automated Measurement Inspection Using Laser Profilers

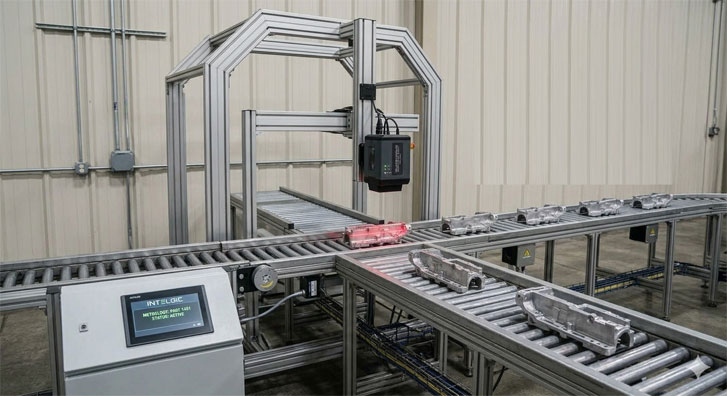

Intelgic builds fully automated inspection systems using laser profile sensors integrated with conveyors, robotic systems, and advanced measurement software.
In this setup:
- Parts move through the inspection station via a conveyor or robotic handling system.
- Laser profile sensors scan the part while it moves through the inspection zone.
- The sensors generate a high-density 3D point cloud of the part.
- Intelgic's software analyzes the point cloud and calculates critical dimensional measurements.
- The measurements are compared with design tolerances or CAD models.
- Parts that exceed tolerance limits are automatically flagged or rejected.
This process allows manufacturers to perform 100% dimensional inspection in real time during production.
Types of Measurements Possible with Laser Profilers
Laser profile sensors can measure a wide range of dimensional features, including:
Because the sensor captures thousands of points per scan, the system provides highly detailed measurement data.
Integration with Automation Systems
One of the biggest advantages of laser profiler-based inspection is the ability to fully integrate it into production lines.
Intelgic's automated systems can include:
This allows inspection to happen continuously without stopping production, enabling true inline metrology.
Comparison: CMM vs Laser Profile Inspection
| Feature | CMM | Laser Profile Sensor System |
|---|---|---|
| Measurement method | Contact probing | Non-contact laser scanning |
| Inspection speed | Slow | Very high |
| Inspection location | Offline lab | Inline production |
| Inspection coverage | Sampling | 100% inspection |
| Automation capability | Limited | Highly automatable |
| Operator dependency | High | Minimal |
| Suitability for high-speed production | Low | Very high |
While CMM machines remain useful for ultra-precision lab measurements, laser profiler systems are ideal for production-line dimensional inspection.
Advantages of Laser Profiler-Based Inspection
Manufacturers adopting laser profiler systems gain several benefits:
These advantages significantly improve quality control and manufacturing efficiency.
Industrial Applications
Laser profiler-based measurement inspection is used across many industries, including:
Intelgic designs customized systems based on the geometry, speed, and inspection requirements of each product.
As manufacturing moves toward Industry 4.0 and smart factories, traditional offline measurement methods are increasingly being replaced by automated inline inspection technologies.
Laser profile sensor-based inspection systems offer a powerful alternative to CMM machines by enabling high-speed, non-contact, automated dimensional measurement directly on the production line.
Intelgic's laser profiler-based inspection solutions combine advanced 3D sensing, intelligent software, and industrial automation to deliver reliable and scalable measurement systems for modern manufacturing.
