In modern manufacturing, profile measurement—the precise measurement of height, depth, angle, and contour of a part—is critical to ensuring product quality, assembly fit, and functional performance. Industries such as automotive, EV, aerospace, precision machining, metal fabrication, and electronics increasingly require micron-level accuracy at production speed.
Laser-based 3D profile cameras (also known as laser profile sensors or laser profilers) have become the preferred technology for achieving high-precision, non-contact profile measurement in automated environments
What Is Profile Measurement?
Profile measurement involves capturing the cross-sectional geometry of a part and evaluating parameters such as:
- Height and depth
- Step and groove dimensions
- Angles and slopes
- Edge roll and chamfer size
- Weld bead profile
- Surface contour and form
Unlike point sensors or 2D cameras, profile measurement evaluates true physical geometry, making it ideal for tight-tolerance applications.
How Laser-Based 3D Cameras Achieve Micron Accuracy

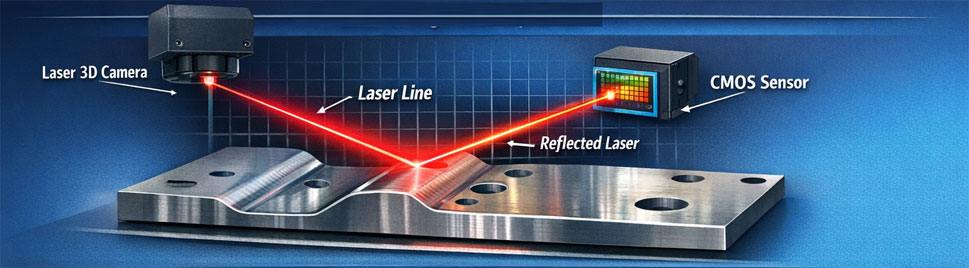

Laser 3D cameras operate using the principle of laser triangulation.

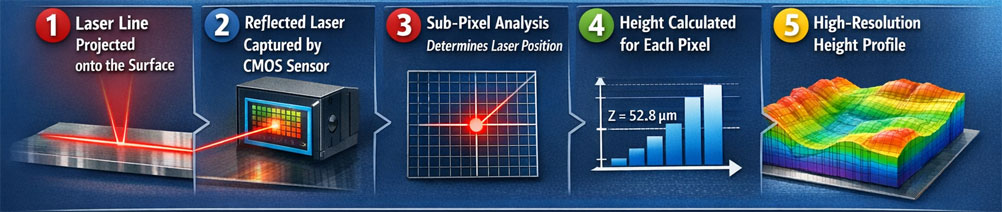

Laser Triangulation Explained
- 1 A sharp laser line is projected onto the part surface
- 2 The reflected laser is captured by a high-resolution CMOS sensor
- 3 Sub-pixel analysis determines the exact laser position
- 4 Each pixel corresponds to a precise height (Z-value)
- 5 The result is a high-density height profile with micron or sub-micron resolution
As either the part or camera moves, thousands of profiles are captured and stitched together to form a true 3D representation.
Why Laser 3D Cameras Are Ideal for High-Precision Measurement
Key Technical Advantages
Micron-level Z accuracy
Non-contact measurement – no deformation of the part
High repeatability independent of operator
Stable performance on shiny, dark, or textured surfaces
High-speed acquisition suitable for inline inspection
Because the measurement is based on geometry rather than image contrast, results remain consistent even under variable lighting conditions.
Key Applications Across Industries
Laser-based micron-accuracy profile measurement is widely used for:
- Engine and transmission components
- EV battery trays and housings
- Weld inspection in body-in-white lines
- Precision machined metal parts
- Sheet metal and stamped components
- Medical and electronic precision parts
What Can Be Measured with Micron Accuracy?
Laser-based 3D cameras can measure a wide range of critical features:
Common Profile Measurements
- Groove depth and width
- Hole depth and countersink profiles
- Step height between surfaces
- Surface waviness and form
- Weld bead height, width, and penetration
- Gear tooth profile and wear
- Edge burr and chamfer geometry
Each measurement is derived directly from the 3D height data, ensuring traceable and reliable results.
Inline vs Offline Profile Measurement
Inline Profile Measurement
- Camera scans parts moving on conveyors
- Encoder-synchronized acquisition
- Real-time pass/fail decisions
- Ideal for high-volume production
Near-Line / Offline Measurement
- Part placed in a dedicated inspection cell
- Higher resolution and denser scans
- Used for validation, audits, and root cause analysis
Both approaches rely on the same laser profiling principles, with system design adapted to the process.
Importance of System Design for Micron Accuracy
Achieving micron-level accuracy is not only about the camera. It requires complete system engineering:
Precision motion control (linear stages, rotary axes)
Rigid mechanical structures and fixtures
Accurate encoder synchronization
Optical alignment and calibration
Advanced profile processing algorithms
This is where Intelgic delivers strong value by providing end-to-end profile measurement automation, not just the sensor.
Intelgic's End-to-End Profile Measurement Automation
Intelgic designs complete systems that combine:
Laser-based 3D profile cameras
Precision mechanical and motion systems
Profile extraction and geometric measurement software
Recipe-based inspection for multiple part types
PLC, robot, and MES integration
Real-time SPC and trend analysis
The result is a production-ready, scalable inspection solution capable of maintaining micron accuracy over long production cycles.
Data, Traceability, and Quality Control
Each inspected profile generates comprehensive data for complete traceability and quality control:
Profile Inspection Data Includes:
- Dimensional values with tolerance limits
- Pass/fail results
- Profile graphs and deviation plots
- Timestamped inspection records
This Enables:
- Statistical process control (SPC)
- Early detection of tool wear or drift
- Digital quality records
- Compliance with automotive and industrial standards
The comprehensive data collection and analysis capabilities provide manufacturers with complete traceability and actionable insights for continuous process improvement.
Laser-based 3D cameras have redefined what is possible in profile measurement, delivering micron-level accuracy, high speed, and non-contact reliability.
When combined with intelligent software, precision mechanics, and automation, they enable 100% inspection, reduce defects, and provide full digital traceability.
By delivering complete end-to-end measurement automation, Intelgic ensures that accurate profile measurement is not confined to the lab—but becomes an integral part of real-world production.
