AI-Powered Machine Vision for Dent, Scratch, Hole, and Painting Defect Detection
Large electrical control panel boxes—used across automotive plants, power distribution rooms, manufacturing units, and industrial automation systems—must meet strict quality standards before they are commissioned or delivered to customers. Any visual defect on the outer enclosure such as dents, scratches, cracks, uneven paint, rust spots, welding defects, or misaligned doors can compromise durability, weather resistance, safety, and brand perception.
Manual inspection of large panel boxes is labor-intensive, inconsistent, and prone to human oversight, especially when the enclosure size is large (20 to 20 feet.), surfaces are reflective, painted, or textured, and the production throughput is high.
Intelgic solves this problem with a fully automated machine vision and AI-based inspection system that detects surface anomalies with high precision, regardless of surface texture, color, or lighting variations.
Understanding Large Control Panel Outer Surface Inspection
Outer surface inspection focuses on identifying visible defects on the external structure of the panel box
- Dents
- Scratches
- Cracks and weld cracks
- Paint defects (shade variation, peeling, improper coating)
- Deformations
- Uneven edges
- Pinholes & surface pits
- Misalignment between doors
- Gaps and uniformity between doors or covers
- Rust / corrosion marks
- Logo or label placement errors
These issues often arise during sheet-metal fabrication, bending, welding, powder coating, transportation, or assembly. Without automation, inspecting large surfaces uniformly is extremely challenging.
Why Automated Outer Surface Inspection Is Essential
Large Surface Areas
Large electrical enclosures have big, flat, and curved surfaces. Manual inspection often misses micro-defects and inconsistently scans the whole surface.
Human Limitations
Surface defects like tiny scratches or micro dents become hard to detect under factory lighting, viewing angles, and fatigue.
High Customer Expectations
OEMs in automotive, rail, power, and industrial automation expect near-flawless finish for their panels.
Compliance & Safety
Any structural deformation or crack can lead to long-term issues in sealing, safety, or mounting stability.
Near-Zero Defects
Modern factories are moving toward automated QC, traceability, and standardized output.
Intelgic’s Automated System for Large Panel Outer Surface Inspection
Intelgic delivers a turnkey machine vision system designed specifically for large control panel enclosures ranging from 500 mm to 3000 mm in size.
Industrial Cameras
High-resolution area-scan or line-scan cameras for precise defect detection
Specialized Lighting
Low-angle, diffused dome, bar lights, and laser lights for optimal illumination
Multi-Camera System
Rig or moving robotic imaging system for complete coverage
GPU Processing
High-performance processing unit for real-time analysis
Vision AI Software
Intelgic Live Vision AI with custom-trained defect detection models
Mechanical Systems
Custom fixtures, stands, and movement systems for your specific setup

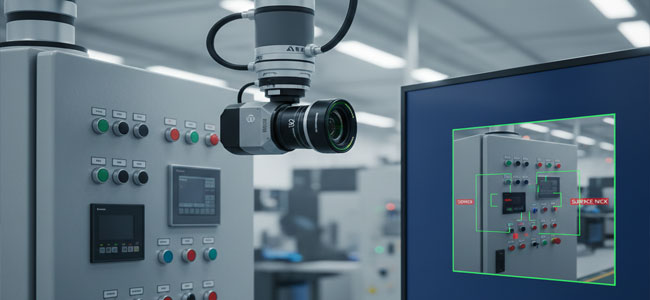

High-Resolution Imaging
To capture the entire surface with high coverage, we use:
- Multi-camera array
- Pan-tilt camera modules
- XY-axis motion system
- Robotic arm with imaging payload
- Line-scan camera for long enclosures
Ensuring every millimeter is imaged with uniform lighting.

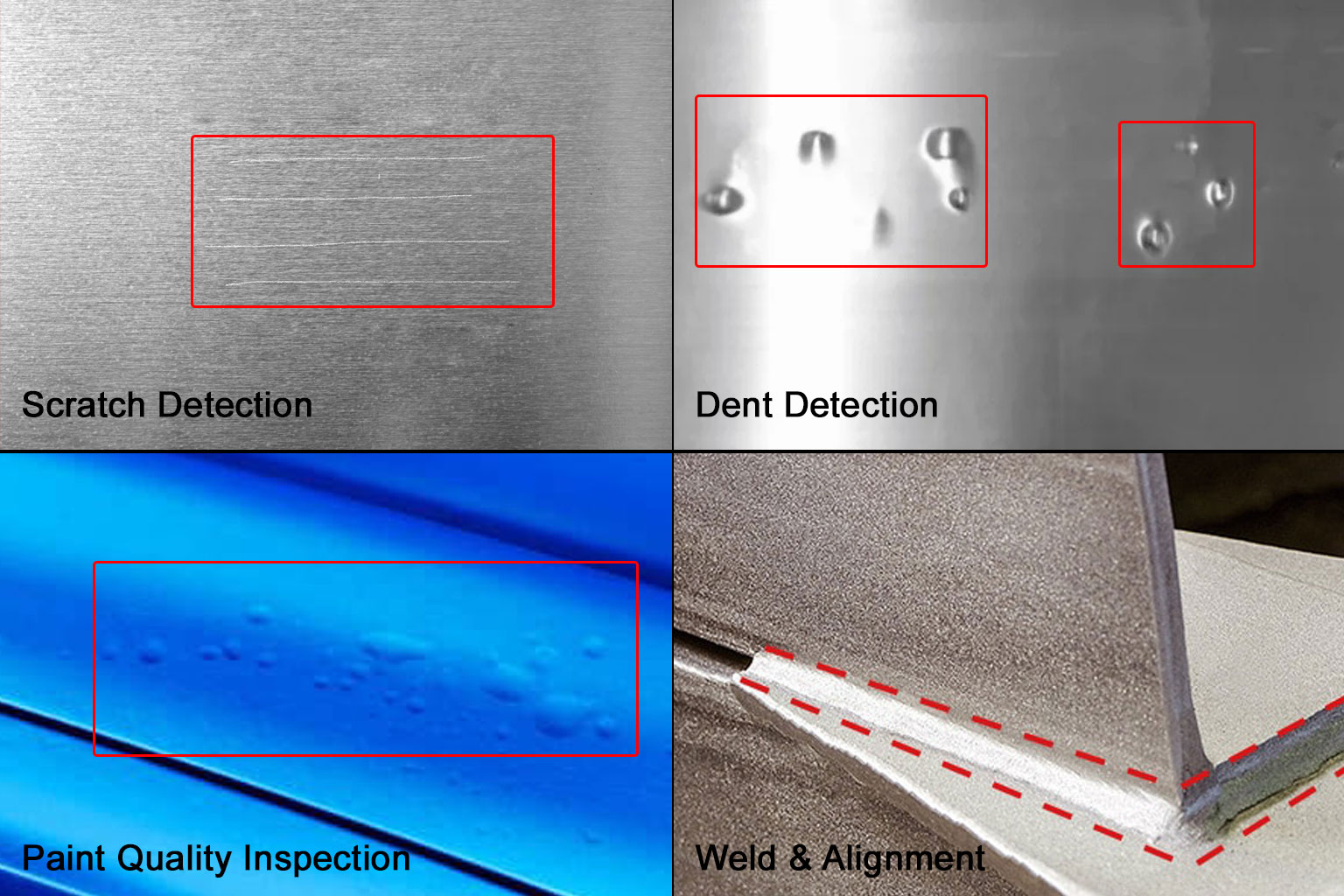

AI-Based Surface Defect Detection
Intelgic’s defect detection AI is trained to identify diverse anomalies:
Scratch Detection
- Light reflectance analysis
- Surface texture deviation
- Edge and line profiling
Dent Detection
- Low-angle lighting
- 3D profile analysis
- Depth variations
Paint Quality Inspection
- Color uniformity (CIELAB, ΔE2000)
- Orange peel detection
- Pinholes in powder coating
- Over/under coating
Weld & Alignment
- Weld bead analysis
- Gap measurement
- Edge straightness
The AI highlights defect locations, classifies types, and measures defect sizes.
Door Gap & Alignment
For customers requiring micrometer-level detection of dents or height variation:
- Laser profile sensor scans the panel
- Door straightness analysis
- Hinge alignment verification
3D Laser Profiling
Optional laser-based 3D inspection for:
- Micrometer-level dent detection
- 3D height map generation
- Precision depth analysis
Automated and Guided Workflow
Load the panel on the station
The operator places the panel box on inspection table or conveyor.
Auto-imaging begins
Camera system captures images zone-by-zone.
AI analyzes defects
Image segments are processed using Intelgic's Vision AI.
Defects highlighted
System visually marks each defect, with severity.
Pass/Fail Output
Based on tolerance settings.
Digital Quality Certificate
Passed panels get a DQC with defect map, timestamps, and images.
Use Cases for Outer Surface Inspection
Our system is designed for industrial panel manufacturers across multiple industries:
Industrial Electrical Cabinets
Detecting surface defects in large control cabinets and enclosures.
HVAC Control Panels
Ensuring flawless surfaces for commercial and industrial HVAC systems.
Automotive Panels
Quality inspection for automation control panels in vehicle production.
Power Distribution
Surface quality control for power distribution control panels.
Renewable Energy
Inspection of inverter cabinets for solar and wind installations.
Elevator Controls
Defect detection for elevator and escalator control boxes.
Telecom Cabinets
Automated inspection of telecom equipment enclosures.
Battery Storage
Surface quality for battery energy storage system enclosures.
Railway Panels
Fabrication quality control for railway and metro control panels.
Server Racks
Automated inspection of network cabinets and server racks.
Advantages of Intelgic's System
Our AI-powered inspection system delivers consistent, high-quality results with these key benefits:
High accuracy and repeatability
No variability across shifts or operators.
Faster inspection cycles
Full inspection completed in seconds.
Catches micro-defects
Using AI + optimized lighting.
Standardized QC
Uniform inspection for every enclosure.
Full traceability
Saved images, defect maps, reports, and history.
Integration with MES/ERP/PLC
Automates QC documentation and production feedback loops.
Supports various surfaces
Powder coating, matte, glossy, textured surfaces.
Eliminates rework
Improves customer satisfaction and reduces complaints.
Why Companies Choose Intelgic
Our complete turnkey solution delivers unmatched inspection capabilities for industrial panel manufacturers:
Complete Turnkey System
Includes camera, lighting, mechanics, and AI - ready to deploy.
Surface Inspection Expertise
Specialized in metals, plastics, and painted components.
Fully Customizable
Adapts to enclosure size and production speed requirements.
Micro-Defect Detection
Identifies even the smallest surface anomalies.
Clear Reporting
Visual defect reports with Digital Quality Certificates.
Flexible Deployment
On-prem or cloud deployment options available.
Scalable Solution
Easily expanded across multiple production lines.
Large control panel box outer surface inspection is critical for ensuring product reliability, mechanical integrity, and brand reputation. Manual inspection methods are no longer adequate for high-volume manufacturing and strict quality standards.
Intelgic's AI-driven machine vision system brings unmatched speed, precision, and automation to the inspection of large panel enclosures—detecting dents, scratches, paint defects, cracks, and alignment issues with high accuracy.
For manufacturers seeking zero-defect control panel production, Intelgic delivers a powerful, future-ready quality inspection solution.
