Verifying Barcode Accuracy, Label Design, Artwork, and Logo Positioning
In modern packaging lines, label accuracy is as critical as product quality itself. An incorrect barcode, wrong label artwork, missing logo, or misplaced design can lead to regulatory non-compliance, product recalls, supply-chain disruptions, and brand damage.
To prevent these risks, manufacturers increasingly rely on machine vision systems combined with AI software to automatically inspect and verify labels in real time—directly on high-speed packaging lines.
Why Label & Barcode Verification Is Critical in Packaging
Packaging labels carry essential information:
- Product identification (SKU, batch, variant)
- Barcodes and QR codes for traceability
- Branding elements (logo, color, artwork)
- Regulatory information (ingredients, expiry date, warnings)
Manual inspection is:
- Error-prone
- Inconsistent
- Not scalable at high speeds
Automated vision-based label inspection ensures 100% verification with consistent accuracy.
What a Vision-Based Label Inspection System Checks
A modern machine vision + AI system can verify multiple aspects of a label simultaneously:
Barcode & QR Code Reading
Reads 1D and 2D codes (Code 128, EAN, UPC, DataMatrix, QR)
Verifies:
- Code presence
- Correct encoding
- Readability and contrast
- Match with expected SKU or batch
Unreadable or incorrect barcodes are automatically flagged and rejected.
Correct Label Presence & Type Detection
The system verifies:
- Whether a label is present or missing
- Whether the correct label is applied for the current product variant
- Mismatch between product type and label artwork
This is critical for multi-SKU packaging lines.
Label Positioning & Alignment Verification
Using precise pixel and geometric analysis, the system checks:
- Label X–Y position on the package
- Rotation or skew
- Offset beyond tolerance limits
Misaligned labels can affect barcode scanning, shelf appeal, and compliance.
Logo Presence, Position & Orientation
AI-powered vision systems verify:
- Logo presence or absence
- Correct logo version
- Orientation (upright, inverted, rotated)
- Accurate placement relative to reference points
This ensures brand consistency across all packaged units.
Artwork & Design Verification Using AI
Traditional rule-based vision struggles with complex artwork. AI overcomes this by:
- Learning the reference artwork from golden samples
- Comparing live images against the trained model
Detecting:
This is especially useful for printed cartons, pouches, sachets, and flexible packaging.
How Vision Systems Perform Label Inspection on Packaging Lines
Step-by-Step Inspection Flow
1. Image Capture

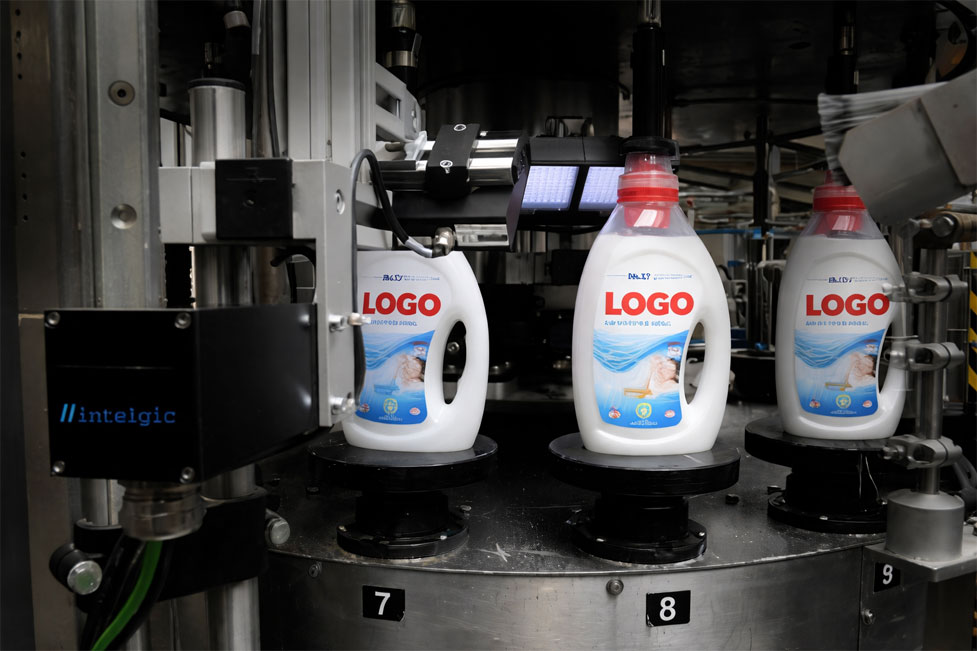

Industrial cameras are installed at strategic points on the packaging line. Images are captured as products pass by at production speed.
2. Lighting Optimization
Proper lighting (diffuse, backlight, or directional) ensures high contrast for barcodes, text, and artwork.
3. AI & Vision Processing
The inspection software:
- Decodes barcodes and QR codes
- Runs OCR for printed text if required
- Applies AI models for artwork and logo verification
- Measures label position and orientation
4. Decision & Action
- Pass/fail decision generated in milliseconds
- Reject signal sent to PLC for automatic removal
- Data logged for traceability
AI vs Traditional Vision in Label Inspection
| Traditional Vision | AI-Powered Vision |
|---|---|
| Rule-based | Learns from examples |
| Sensitive to variation | Handles variability |
| Limited artwork checking | Deep artwork validation |
| High false rejects | Reduced false positives |
| Time-consuming setup | Faster adaptability |
AI enables robust inspection even when labels vary slightly due to printing or packaging tolerances.
Inline Integration with Packaging Machines
Vision-based label inspection systems integrate seamlessly with:
Conveyors and packaging machines
PLCs for triggering and rejection
Encoders for speed synchronization
MES / ERP systems for SKU validation
This allows real-time verification without slowing down production.
Role of End-to-End Automation
A reliable label inspection solution requires more than just a camera. This is where Intelgic delivers strong value.
Intelgic's End-to-End Label Inspection Solution Includes:
Hardware Components:
- Camera and lens selection based on packaging speed
- Lighting design for reflective or glossy labels
- Mechanical mounting and enclosures
Software Capabilities:
- AI-powered vision software for comprehensive verification
- Recipe-based configuration for multi-SKU lines
- Cloud or on-prem dashboards for analytics
Industries Benefiting from Vision-Based Label Inspection
Food & beverage packaging
Pharmaceuticals and medical devices
FMCG and consumer goods
Cosmetics and personal care
Logistics and secondary packaging
Chemical and industrial products
In regulated industries, automated label verification is often mandatory rather than optional.
Data, Traceability & Compliance
Each inspected product can generate:
Barcode and label verification result
Image evidence
Timestamped inspection logs
Batch and SKU association
This supports:
Regulatory audits
Recall prevention
Root cause analysis
Automated barcode and label inspection using vision systems and AI software has become essential for modern packaging lines.
By verifying barcode accuracy, label presence, artwork correctness, and logo positioning in real time, manufacturers can ensure:
With end-to-end automation covering hardware, software, and integration, Intelgic transforms label inspection from a manual checkpoint into a reliable, intelligent quality gate—built for today's fast-moving packaging environments.
