Automated Visual Inspection of Painted and Fabricated Automotive Metal Parts Using Machine Vision and AI

Published on: Jul 15, 2025

Introduction

In the highly competitive automotive industry, metal part suppliers play a crucial role in delivering structural and functional components—ranging from doors, frames, and panels to engine brackets and suspension arms—to global automakers. These parts undergo a series of processes such as metal fabrication, welding, and painting, and are produced in thousands of variations, each with unique shapes, sizes, and surface finishes.

With customer quality requirements tightening, the need for precise and repeatable defect detection has never been greater. Yet, many manufacturers still rely on manual visual inspection, engaging large teams of operators to check parts under traditional lighting. This outdated process is prone to human error, inconsistency, and missed defects, especially in high-volume production environments.

Intelgic offers a fully automated, AI-powered inspection solution designed to meet the quality needs of modern automotive part manufacturers—improving reliability, reducing costly returns, and increasing production efficiency.

Current Challenges in Manual Inspection

1. Labor-Intensive Process

• Teams of 10 to 30 operators are assigned to inspect every part manually.

• Operators inspect parts using traditional ambient lighting, with flashlights or overhead lamps.

2. Inconsistency and Missed Defects

• Under time pressure and repetitive conditions, operators miss critical defects.

• Results vary between shifts and inspectors, reducing inspection reliability.

• Parts with defects are often sent to repaint or passed unknowingly, leading to customer complaints.

3. Wide Range of Defect Types

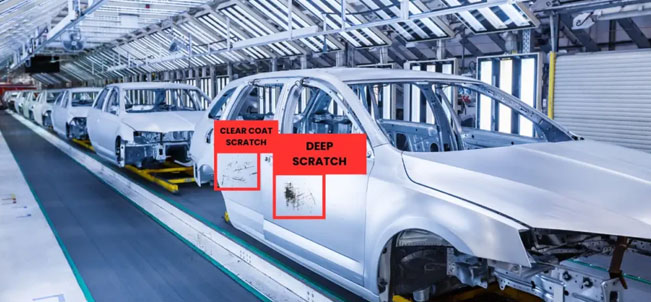

Common defects in painted and fabricated automotive metal parts include:

• Scratches and abrasions

• Dust particles trapped during painting

• Contamination

• Color mismatches or non-uniform coating

• Pinholes

• Smudges or overspra

4. High Product Variation

• Manufacturers may produce hundreds or thousands of different SKUs, each with distinct:

  • Geometries

  • Curvatures

  • Surface textures

  • Colors (black, yellow, metallic, glossy, matte)

This diversity makes it challenging to design a fixed inspection system or train operators for all possibilities.

Intelgic’s AI-Powered Inspection Solution

Intelgic solves these challenges through a comprehensive, modular inspection system that combines:

1. AI-Powered Image Processing Software

• Uses deep learning models trained on real-world defect datasets.

• Detects micro-level defects even on shiny, reflective, or dark surfaces.

• Ignores harmless artifacts like lighting glare or texture, focusing only on true defects.

• Adaptive thresholding allows the system to work across multiple material types and colors.


2. Multi-Camera Imaging Systems

• Strategically positioned area scan cameras or line scan cameras cover:

  • Top surfaces

  • Side flanges

  • Curved edges

  • Deep cavities

• Cameras can be static or mounted on robotic rails or gantries depending on inspection area and throughput needs.

3. Intelligent Motion Systems

To image all surfaces of complex parts, Intelgic uses:

• Rotating platforms to turn the part for 360° inspection.

• Robotic arms or gantries to move cameras around large parts.

• X-Y-Z motorized rails to position cameras and lights dynamically.

• Motion is synchronized with image capture via encoder-based triggering for sharp, correctly timed images.

4. Custom Industrial Lighting

• Dark field lighting for scratch detection on shiny surfaces.

• Dome lighting to remove glare and shadow from curved panels.

• Red, white, or blue LEDs selected based on the color and reflectivity of the material.

Lighting is calibrated per part model to ensure uniform illumination.

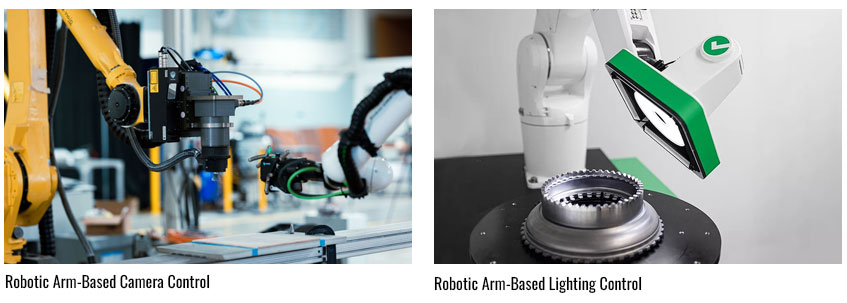

Robotic Arm-Based Camera and Lighting Control

For the inspection of highly complex or asymmetrical automotive parts, Intelgic employs industrial robotic arms to mount and maneuver cameras and lighting systems dynamically around the part. These robotic systems offer unmatched flexibility in capturing images from multiple orientations and hard-to-reach angles—critical for complete surface inspection of 3D components.

Why Use Robotic Arms?

• Traditional gantry or rail systems are limited to linear motion along X, Y, and Z axes.

• Many automotive parts—such as suspension mounts, welded assemblies, or painted brackets—have irregular surfaces, cavities, and curved edges that require multi-axis positioning for proper imaging.

• Robotic arms provide 6 degrees of freedom (DOF), enabling smooth and precise movement of cameras and lights around the part at any angle or tilt.

How It Works

1. Cameras and light sources are mounted on the end-effector of the robotic arm.

2. Based on the part geometry and inspection recipe, the robot moves the vision system to pre-programmed waypoints.

3. At each waypoint, the robot stops and triggers the image capture system.

4. The camera and lighting orientation are adjusted in real time to achieve optimal angle and illumination for defect visibility.

5. AI processes each image and maps defect data across the 3D geometry of the part.

Applications

• Welded metal assemblies with deep pockets or angled welds

• Large painted surfaces with variable curvature

• Components with internal brackets or overhangs

• Symmetry-critical parts where uniform inspection from multiple angles is essential

Benefits

• Complete Surface Coverage: Inspects 100% of the part surface, including hard-to-reach areas.

• Adaptive Imaging: Adjusts to different part sizes, orientations, and geometries.

• Fast Changeovers: Switch between inspection routines for different parts using robot programming.

• Improved Accuracy: Camera angle and light positioning are always repeatable and consistent.

By incorporating robotic arms into the vision system, Intelgic enhances the inspection coverage and versatility of its AI-based defect detection platform—making it an ideal solution for manufacturers producing diverse and complex automotive metal parts.

How It Works – Inspection Workflow

1. Part enters the inspection station, placed on a conveyor or rotating fixture.

2. Cameras and lights are activated, aligned by part ID or job recipe.

3. The system captures multiple images from different angles, zones, and focal depths.

4. Intelgic’s AI analyzes each image in real-time to:

   • Detect surface-level and coating defects

   • Compare painted color uniformity

   • Highlight location and type of defect

5. Result: PASS or FAIL is displayed with defect classification.

6. Data is logged automatically, including:

   • Defect coordinates

   • Part number or barcode

   • Timestamp

   • Annotated images for records

Advanced Capabilities

•  Works with glossy black, bright yellow, or textured metallic parts

•  Trained to detect even nearly invisible scratches under low-angle lighting
   Integrates with existing MES or PLC systems

• Highly scalable – can handle high-mix, low-volume production or high-volume lines

•  Supports offline model training and online adaptive learning

Benefits to Automotive Part Manufacturers

Benefit	Description
Consistent Inspection	AI performs the same way every time—no fatigue or variability
Reduced Labor Cost	Significantly fewer operators needed
Improved Quality	Higher defect detection accuracy = fewer customer complaints
Rework Reduction	Early detection prevents unnecessary repainting
Traceability	Full digital records of each part inspected
Scalable System	Flexible architecture fits small shops and large OEM suppliers alike

The traditional model of manual visual inspection is no longer sufficient for modern automotive part manufacturers who must meet demanding quality standards while managing a wide variety of parts and materials. Intelgic’s AI-based inspection system offers a robust, automated, and scalable solution that dramatically improves inspection reliability, productivity, and traceability.

By combining machine vision, smart motion control, advanced lighting, and AI-driven analytics, Intelgic ensures that every part you deliver meets the strictest quality criteria—without slowing down your production.
