Ensuring Presence, Orientation, and Print Quality with Intelgic Vision Systems
In modern manufacturing, labels and logos are not just identifiers—they carry traceability data, regulatory information, branding value, and customer trust. A missing label, a rotated barcode, a smudged logo, or a printing defect can lead to rejected shipments, compliance issues, or brand damage.
To address these risks, Intelgic provides an advanced camera- and AI-based label inspection system that automatically verifies label presence, position, orientation, design accuracy, and print quality in real time—without slowing down production.
Why Automated Label & Logo Inspection Is Critical
Manual label checks are inconsistent and unreliable at scale. Barcode scanners can confirm that a code is readable—but they cannot verify:
- whether a label is missing,
- if it is applied at the wrong location,
- if it is rotated or inverted,
- if the logo or design is printed incorrectly,
- or if the label itself is damaged or defective.
Intelgic's system inspects the visual correctness of the label, not just its data.

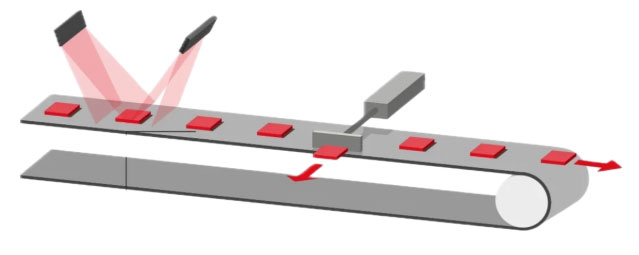

System Overview: Camera + Lighting + AI Software
A typical Intelgic label inspection setup includes:
- Industrial cameras positioned for optimal label visibility
- Controlled lighting to eliminate glare and improve contrast
- Optional enclosures to isolate the inspection zone
- Intelgic's AI-powered vision software for real-time analysis
This setup can be deployed on conveyors, robotic cells, indexing stations, or packaging lines.
Label Presence Detection
The first inspection step is confirming whether a label exists where it should.
How Presence Is Inspected
The system identifies a predefined label zone on the product or package. Using contrast, edge detection, and AI-based region classification, it determines:
- Label present
- Label missing
- Partial or peeled label
Why Presence Detection Matters
Missing labels often pass unnoticed until later stages, causing rework or scrap. Intelgic's system detects these issues instantly and triggers rejection or operator alerts.
Label Position & Disorientation Inspection
A label may be present but incorrectly applied.
Position Validation
Intelgic's software checks:
- X–Y placement relative to reference edges or features
- Distance from corners, holes, or seams
- Compliance with predefined positional tolerances
Orientation & Disorientation Detection
The system verifies:
- Rotation angle (e.g., ±2° tolerance)
- Upside-down or mirrored labels
- Skewed or tilted application
Disoriented labels can cause downstream scanner failures or violate customer and regulatory guidelines.
Design & Artwork Validation of Labels
Beyond placement, Intelgic's system inspects the design correctness of the label itself.

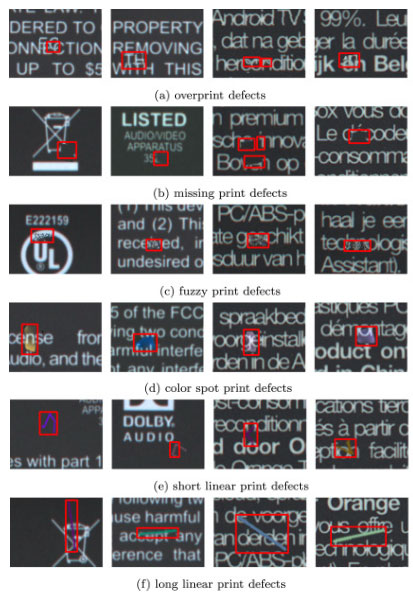

Design Defects Detected
- Incorrect artwork or wrong label variant
- Missing symbols, warnings, or certification marks
- Text misalignment or spacing issues
- Truncated or stretched graphics
How Design Matching Works
A golden reference design or approved artwork file is stored in the system. The captured label image is aligned and compared against this reference. Pixel-level and feature-level analysis highlight deviations. This ensures that the correct label design is always applied to the correct product.
Logo Inspection and Brand Protection
Logos are critical brand assets, and even small defects can impact perceived quality.
Logo Defects Identified
- Smudging or ink spread
- Missing or broken elements
- Color variation beyond tolerance
- Partial printing or fading
Intelgic's AI models are trained on good and defective samples to distinguish between acceptable variation and true print defects—something rule-based systems struggle to do reliably.
AI-Driven Print Quality Assessment
Traditional inspection methods fail with subtle print defects. Intelgic's AI-based approach enables:
- Detection of low-contrast printing
- Identification of micro-defects not visible to operators
- Consistent decisions across shifts and lines
AI continuously improves as more samples and feedback are added to the system.
Barcode, QR Code, and Text Validation
In parallel with visual inspection, the system can:
- Decode barcodes and QR codes
- Read human-readable text using OCR
- Verify format, length, and structure of encoded data
This ensures both visual correctness and data correctness of the label.
Real-Time Decisions and Production Integration
Intelgic's system delivers:
- Instant pass/fail decisions
- Visual overlays highlighting detected defects
- Automatic rejection via PLC or robot control
- Alerts for recurring label issues
All inspection results are logged with images and metadata for traceability and audits.
Applications Across Industries
This solution is ideal for:
Automotive and auto components
FMCG and packaging
Pharmaceuticals and medical devices
Electronics and consumer goods
Industrial parts with traceability labels
Intelgic’s AI-powered label and logo inspection system ensures that every product leaving the line has:
- The correct label
- In the correct position
- With the correct orientation
- Printed with acceptable quality
By combining industrial cameras, controlled lighting, and advanced AI algorithms, Intelgic delivers a reliable, scalable, and future-ready solution for automated label and logo inspection in manufacturing environmen
