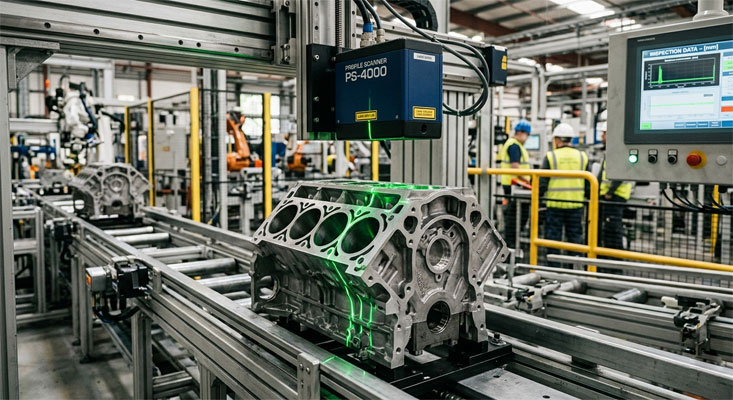

Accurate measurement inspection is critical in modern manufacturing. Many industries such as automotive, aerospace, electronics, and metal fabrication require precise dimensional verification to ensure that every component meets strict design specifications.
Traditional measurement methods such as manual gauges or Coordinate Measuring Machines (CMMs) are accurate but often slow and unsuitable for high-speed production environments.
Laser profile sensors provide a powerful alternative by enabling high-speed, non-contact measurement inspection directly on production lines.
What is a Laser Profile Sensor?
A laser profile sensor is a type of 3D vision sensor that uses a laser line projected onto an object to measure its shape and dimensions.

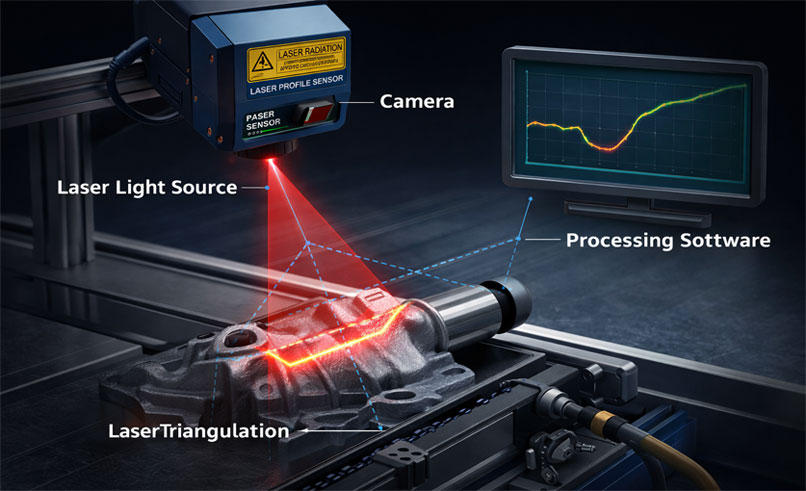

The system typically consists of:
A laser light source
that projects a line onto the object
A camera
that captures the reflected laser line
Processing software
that calculates the object's profile
The technology is commonly known as laser triangulation. By analyzing how the laser line deforms when it hits the object surface, the system can generate a precise cross-sectional profile of the object.
How Laser Profile Sensors Work
Laser profile sensors operate using a technique called laser triangulation.
Step 1 — Laser Projection
A laser projects a thin line onto the surface of the object.
Step 2 — Image Capture
An integrated camera captures the reflected laser line.
Step 3 — Profile Calculation
The sensor calculates the exact shape of the object based on the deformation of the laser line.
Step 4 — Profile Generation
The result is a 2D cross-sectional profile of the object.
When the object moves under the sensor, multiple profiles are captured and combined to create a full 3D surface model.

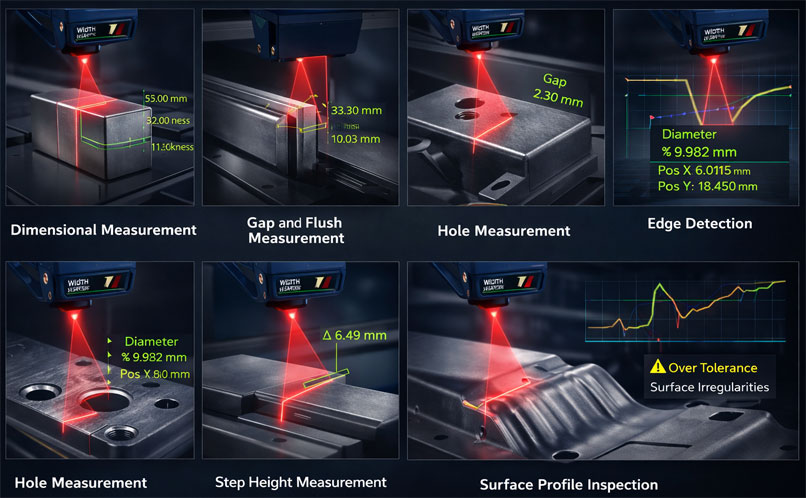

Key Measurement Capabilities
Laser profile sensors can measure various features with extremely high accuracy.
Dimensional Measurement
Measure width, height, and thickness of objects.
Gap and Flush Measurement
Measure alignment between surfaces, commonly used in automotive body inspection.
Hole Measurement
Measure diameter and position of holes.
Edge Detection
Identify edges and contours of parts.
Step Height Measurement
Measure height differences between surfaces.
Surface Profile Inspection
Detect deformation or surface irregularities.
Advantages of Laser Profile Sensors
Non-Contact Measurement
Objects can be measured without physical contact, preventing damage.
High-Speed Inspection
Sensors can capture thousands of profiles per second.
High Accuracy
Laser sensors can achieve micron-level measurement precision.
Harsh Environments
They work reliably in industrial environments.
Real-Time Measurement
Measurements can be performed directly on production lines.
Applications in Manufacturing
Automotive Manufacturing
- Measurement of engine components
- Gap and flush inspection
- Gear profile inspection
Metal and Steel Industry
- Measurement of sheet metal thickness
- Detection of surface deformation
- Weld inspection
Electronics Manufacturing
- PCB component height inspection
- connector alignment verification
Packaging Industry
- Bottle cap height measurement
- package shape verification
Construction Materials
- tile flatness inspection
- dimensional measurement of building materials
Laser Profile Sensors vs CMM Machines
Laser profile sensors are often used as an alternative to traditional CMM systems in production environments.
| Feature |
Laser Profile Sensors
|
CMM Machines
|
|---|---|---|
| Measurement Method | Non-contact | Contact probing |
| Speed | High-speed inspection | Slow measurement |
| Production Line Integration | Easy | Difficult |
| Automation | Fully automated | Mostly manual |
| Environment | Suitable for factory floor | Requires controlled environment |
Laser profile sensors are ideal for real-time measurement inspection, while CMM machines are typically used for laboratory-level precision measurement.
Integration with Machine Vision and AI
Modern inspection systems often combine laser profile sensors with machine vision and AI technologies.
This combination provides a complete inspection solution for both dimensional and surface defects.
Intelgic's Laser Profile Inspection Solutions
Intelgic develops advanced measurement inspection systems using laser profile sensors and AI-powered software.
These systems are designed to perform accurate measurements directly on production lines.
Intelgic solutions include:
- multi-sensor measurement systems
- automated conveyor inspection systems
- AI-based defect detection
- integrated quality analytics software
Applications include:
- automotive part measurement
- metal sheet inspection
- tile flatness measurement
- stamping inspection
Future of Laser-Based Measurement Inspection
Laser profile sensor technology continues to advance rapidly. Emerging developments include:
higher resolution sensors
faster scanning speeds
AI-assisted measurement analysis
integration with digital twin systems
Laser profile sensors are powerful tools for high-precision measurement inspection in modern manufacturing. By using laser triangulation technology, these sensors provide accurate, high-speed, and non-contact dimensional measurements.
As industries move toward smart factories and automated quality control, laser profile sensors will play an increasingly important role in ensuring product quality and production efficiency.
