3D laser profile sensors have become one of the most powerful technologies for precision measurement inspection in modern manufacturing. Using laser triangulation technology, these sensors capture accurate surface profiles and dimensional measurements at high speeds.
Unlike traditional measurement tools, laser profile sensors allow non-contact, real-time inspection directly on production lines, enabling manufacturers to maintain high product quality while keeping production running efficiently.
Below are 40 real-world industrial use cases where 3D laser profile sensors are widely used.

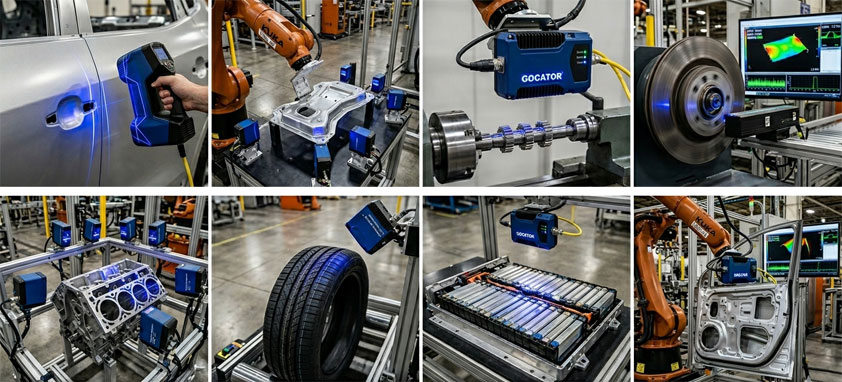

Automotive Manufacturing Applications
Use Cases 1-8
Gap and Flush Measurement
Measure gaps between automotive body panels to ensure proper alignment.
Stamping Part Measurement
Verify dimensions of stamped metal components.
Gear Profile Inspection
Measure gear tooth geometry and spacing.
Brake Disc Flatness Inspection
Check surface flatness of brake discs.
Engine Block Measurement
Measure critical features of engine components.
Tire Tread Profile Measurement
Inspect tread patterns and depth.
Battery Pack Assembly Inspection
Verify alignment of battery modules.
Automotive Door Frame Inspection
Measure dimensional accuracy of door frames.

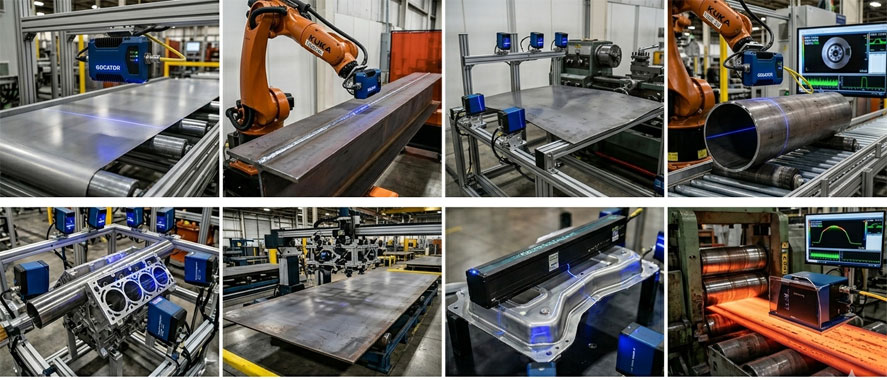

Metal and Steel Industry Applications
Use Cases 9-16
Sheet Metal Thickness Measurement
Measure thickness variations in metal sheets.
Weld Seam Inspection
Detect weld height and shape irregularities.
Metal Surface Deformation Detection
Identify bending or warping in metal sheets.
Pipe Diameter Measurement
Measure external diameter of pipes.
Tube Roundness Inspection
Verify roundness of tubes and cylinders.
Metal Plate Flatness Inspection
Measure flatness of steel plates.
Edge Position Measurement
Detect edges and boundaries of metal parts.
Rolling Mill Profile Measurement
Monitor material thickness during rolling processes.

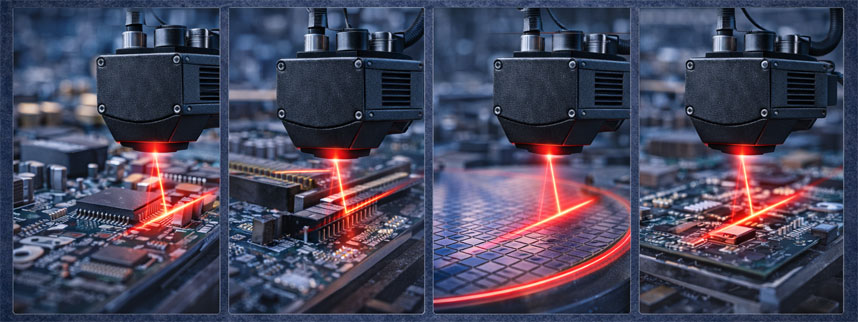

Electronics Manufacturing Applications
Use Cases 17-20
PCB Component Height Inspection
Measure height of mounted components on PCBs.
Connector Alignment Inspection
Ensure connectors are correctly positioned.
Semiconductor Wafer Thickness Measurement
Measure wafer thickness variations.
Microelectronics Assembly Inspection
Inspect alignment of micro components.
Packaging and Consumer Goods
Use Cases 21-24
Bottle Cap Height Measurement
Verify cap height on bottles.
Package Shape Inspection
Check deformation in packaging containers.
Fill Level Measurement
Measure product fill levels in containers.
Carton Box Dimension Inspection
Measure box size and shape.
Rubber and Polymer Manufacturing
Use Cases 25-28
Rubber Sheet Thickness Inspection
Measure thickness of rubber sheets.
Conveyor Belt Profile Inspection
Inspect belt thickness and wear.
Plastic Extrusion Profile Measurement
Monitor shape of extruded plastic parts.
Injection Molded Part Measurement
Verify dimensional accuracy of molded parts.
Construction Materials Industry
Use Cases 29-32
Tile Flatness Measurement
Inspect flatness of ceramic tiles.
Concrete Block Dimension Inspection
Measure block size and alignment.
Glass Thickness Measurement
Verify thickness of glass panels.
Marble and Stone Surface Inspection
Detect surface irregularities.

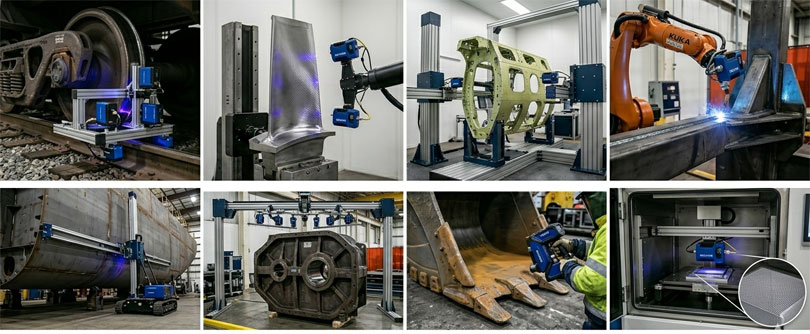

Specialized Industrial Applications
Use Cases 33-40
Railway Wheel Profile Inspection
Measure wear and profile of train wheels.
Turbine Blade Profile Measurement
Inspect shape of turbine blades.
Aerospace Component Measurement
Verify dimensions of aircraft parts.
Robotic Welding Quality Inspection
Measure weld height and bead profile.
Shipbuilding Plate Alignment Inspection
Verify alignment of steel plates.
Large Machinery Component Measurement
Inspect large industrial components.
Mining Equipment Wear Measurement
Measure wear on heavy machinery parts.
Additive Manufacturing Layer Inspection
Inspect layer thickness in 3D printed parts.
Advantages of 3D Laser Profile Sensors
Laser profile sensors offer many benefits compared to traditional measurement methods.
High Measurement Accuracy
Sensors can measure dimensions with micron-level precision.
Non-Contact Inspection
Objects can be measured without touching them.
High-Speed Scanning
Sensors can capture thousands of profiles per second.
Production Line Integration
Sensors can be installed directly on manufacturing lines.
Real-Time Quality Control
Manufacturers can detect defects instantly.
Integration with AI and Machine Vision
Modern manufacturing systems often combine laser profile sensors with machine vision cameras and AI algorithms.
This combination allows systems to inspect:
- dimensional accuracy
- surface defects
- assembly verification
Companies like Intelgic develop integrated inspection systems combining laser sensors, industrial cameras, AI software, and automation platforms.
The Future of Laser Profile Inspection
As manufacturing continues to evolve toward smart factories, laser profile sensors will play a critical role in automated quality inspection.
Future developments include:
- faster sensors with higher resolution
- AI-assisted measurement analysis
- integration with robotics and digital twins
- fully automated inline inspection systems
3D laser profile sensors are transforming dimensional inspection in manufacturing by providing high-speed, accurate, and non-contact measurement capabilities.
With applications across industries such as automotive, electronics, construction materials, and packaging, these sensors are enabling manufacturers to achieve real-time quality control and improved production efficiency.
As smart factories continue to develop, laser profile sensors will remain a key technology for advanced industrial measurement inspection systems.
