Vibration Monitoring in High-Speed Conveyor Systems
Published on: Mar 02, 2026
Written by:Content team, Intelgic
Laser-Based Non-Contact Measurement with Intelgic’s Intelligent Monitoring Platform
High-speed conveyor systems are the backbone of modern manufacturing — from automotive assembly and metal processing to packaging and logistics. When conveyors run at high speed, even minor vibration can lead to critical operational issues.
Traditional vibration monitoring methods often rely on contact accelerometers mounted on the machine body. While effective in some cases, these methods may not detect belt surface vibration, structural oscillation, or product-induced movement accurately.
Intelgic provides a laser-based non-contact vibration monitoring system integrated with its intelligent industrial software platform to enable real-time monitoring, analytics, and predictive maintenance.
Why Vibration Monitoring Is Critical
Common Causes of Vibration
- Bearing wear
- Roller imbalance
- Misaligned shafts
- Worn pulleys
- Loose mounting structures
- Uneven product loading
- Belt tension variation
Unchecked Vibration Causes

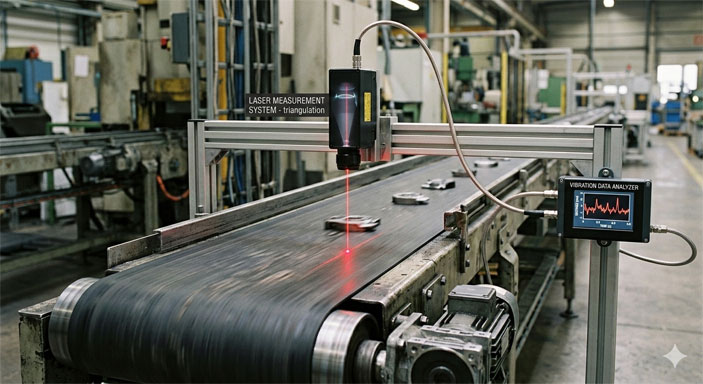

Laser-Based Non-Contact Vibration Measurement
Intelgic uses laser displacement sensors (triangulation-based) to capture precise vibration data without physical contact.
Surface Displacement
Micro-level precision
Amplitude Variation
Real-time capture
Frequency Analysis
FFT processing
Multi-Direction
Vertical & lateral
Why Laser Sensors?
Non-contact measurement
No physical interference with moving parts
No mechanical interference
Doesn't affect conveyor operation
High precision
Micron-level resolution capability
High-speed compatible
Perfect for fast-moving belts
Real-time data
Continuous instantaneous capture

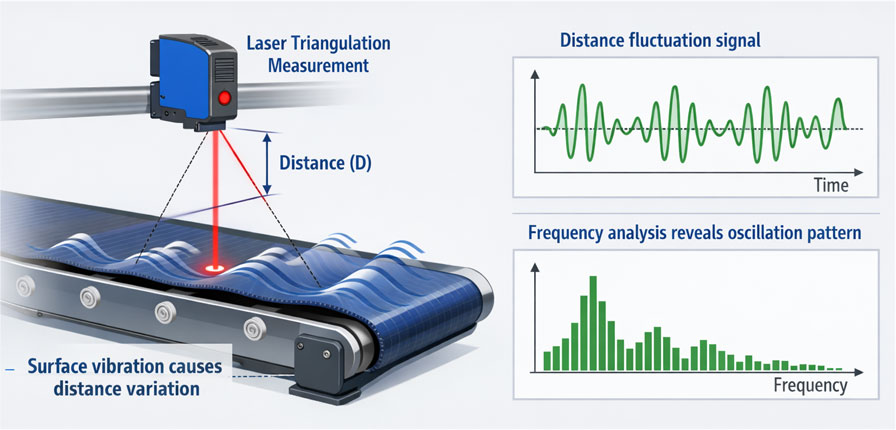

Measurement Principle
Laser displacement sensors operate using triangulation. The sensor projects a laser beam onto the moving conveyor. Reflected light is captured by a position-sensitive detector, enabling precise distance calculation.
The measured distance fluctuates
These fluctuations represent vibration amplitude
Frequency analysis reveals oscillation pattern
This method captures micro-movements that accelerometers may not detect at the surface level.
System Architecture
Intelgic's vibration monitoring system integrates seamlessly into industrial environments:
Laser Sensor
Data Acquisition
Controller Box
Edge Processing
Dashboard
Alert System
The system integrates directly into existing production lines without operational interruption.
Real-Time Data Processing Pipeline
Signal Capture
Continuous distance measurements at high sampling rates ensure no vibration events are missed.
Signal Filtering
- Noise reduction
- Outlier removal
- Baseline normalization
Frequency Analysis
FFT algorithms identify dominant frequencies, harmonics, and abnormal spikes.
AI Anomaly Detection
- Learns normal profiles
- Detects deviations
- Predicts failures
- Classifies severity
Key Monitoring Parameters
The system continuously tracks critical vibration metrics to provide comprehensive mechanical health insights.
Diagnostic Capabilities
These parameters help maintenance teams identify specific issues:
Structural Resonance
Specific frequency patterns indicate resonance conditions
Bearing Degradation
High-frequency spikes indicate bearing wear
Imbalance Issues
Consistent amplitude variations reveal imbalance
Misalignment
Phase shifts indicate shaft misalignment
Dashboard & Analytics
Intelgic provides a comprehensive real-time dashboard for complete visibility into conveyor health.
Live vibration waveform
Frequency spectrum chart
Historical trend graph
Alarm log & notifications
Maintenance recommendations
Machine health index
Integration with Inspection Systems
In manufacturing lines using AI-based vision inspection, excessive vibration can blur images, affect dimensional accuracy, and reduce defect detection performance.
Deployment Models
Intelgic offers scalable solutions that grow with your operational needs, from single conveyors to entire production plants.
Benefits of Intelgic's Solution
Non-Contact Precision
High-precision measurement without mechanical interference or wear.
Real-Time Monitoring
Continuous data capture and instantaneous analysis capabilities.
AI-Powered Detection
Machine learning algorithms identify anomalies before they become failures.
Predictive Maintenance
Shift from reactive repairs to proactive maintenance scheduling.
Reduced Downtime
Early detection prevents catastrophic failures and production stops.
Enhanced Reliability
Improved equipment lifespan and consistent inspection quality.
Why Intelgic?
Complete intelligent conveyor health monitoring powered by AI
Complete Solution
Hardware + software integration out of the boxIndustrial-Grade
Rugged sensors built for factory environmentsCustom Integration
Tailored mechanical and software integrationConnectivity
PLC & MES system integration capabilitiesHigh-speed conveyors are critical assets in modern manufacturing. Undetected vibration can lead to reduced product quality, machine damage, and costly downtime.
Intelgic's laser-based vibration monitoring system enables continuous non-contact monitoring, real-time AI analysis, predictive maintenance insights, and seamless industrial integration.
By combining precision laser sensing with advanced analytics, Intelgic helps manufacturers improve operational reliability and move toward truly intelligent factories.
