SOP Monitoring in Door Component Drilling Using Camera and AI
Published on: Mar 10, 2026
Written by:Content team, Intelgic
In door manufacturing and metal fabrication industries, drilling is one of the most critical operations. Door components such as frames, hinges, mounting brackets, and reinforcement plates require precisely positioned holes according to engineering design specifications.
Even small errors in drilling—such as incorrect hole positions, wrong orientation of the component, or skipped drilling operations—can cause serious assembly issues downstream. These errors may lead to misaligned doors, installation problems, or costly rework.
To prevent such issues, Intelgic provides an AI-powered camera monitoring solution that verifies whether operators follow the Standard Operating Procedure (SOP) during the drilling process.
The system ensures that the operator places and rotates the door component correctly in the drilling machine so that holes are drilled at the correct locations based on the design.
The Challenge in Manual Drilling Operations
In many factories, drilling operations are still performed manually using drilling machines or semi-automatic fixtures.
Common issues include:
Incorrect Component Orientation
Door components must often be drilled from multiple sides. Operators must rotate the component correctly between drilling steps.
Wrong Drilling Position
If the part is not placed accurately in the fixture, the drilled hole may not match the design specification.
Skipped Drilling Steps
In multi-hole drilling operations, some holes may accidentally be skipped.
Human Fatigue
Repetitive manual operations increase the chances of mistakes over time.
Lack of Process Monitoring
Supervisors cannot continuously monitor every drilling workstation.
These problems can significantly affect product quality and manufacturing efficiency.

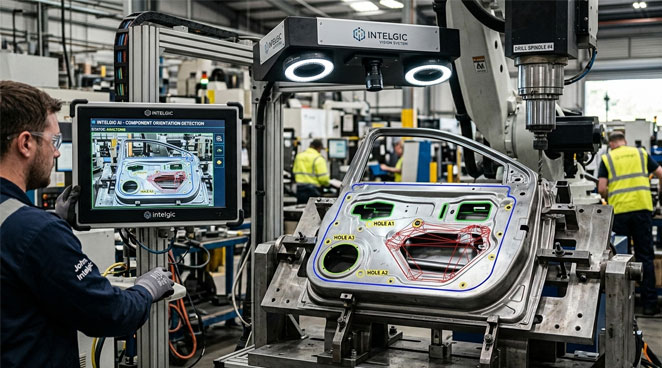

Intelgic's AI-Based SOP Monitoring Solution
Intelgic provides a camera-based monitoring system powered by artificial intelligence that verifies the drilling process in real time. The system ensures that operators follow the required SOP steps while performing drilling operations.
The solution includes:
The system continuously monitors the drilling process and verifies whether the operator performs the required steps correctly.

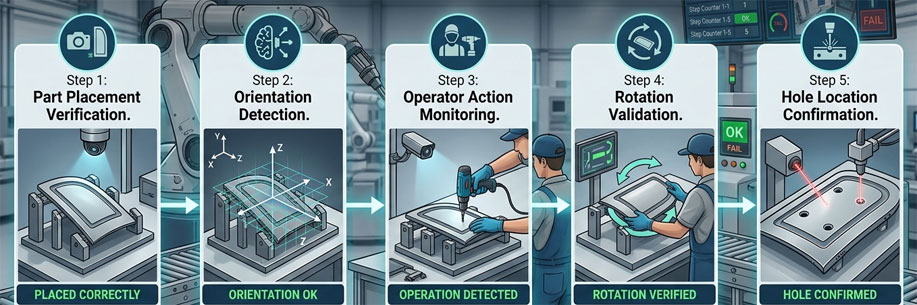

Monitoring the Drilling Workflow
The system monitors the complete drilling workflow.
Step 1 – Part Placement Verification
The camera checks whether the door component is placed correctly in the fixture before drilling begins.
Step 2 – Orientation Detection
The AI system verifies the orientation of the component to ensure it matches the required drilling step.
Step 3 – Operator Action Monitoring
The system monitors the operator's actions and confirms that the drilling operation is performed.
Step 4 – Rotation Validation
After completing one drilling step, the operator must rotate the component. The AI verifies that the rotation angle and orientation match the required SOP step before the next drilling operation.
Step 5 – Hole Location Confirmation
The system checks whether the drilled hole corresponds to the expected design position.
AI-Based Component Orientation Detection
Intelgic's AI algorithms analyze the captured images to detect key visual features of the door component.
These features may include:
Using these visual markers, the AI can determine the exact orientation and position of the component inside the drilling fixture. This ensures that drilling is performed at the correct location.
SOP Compliance Verification
The system compares the observed operator actions with the predefined drilling SOP.
The SOP may include steps such as:
The AI validates that these steps occur in the correct sequence. If a step is skipped or performed incorrectly, the system immediately detects the deviation.
Real-Time Alerts
When an error is detected, the system can provide instant feedback.
Possible responses include:
- Visual alerts on a monitor
- Warning lights at the workstation
- Audio alerts for the operator
- PLC signals to pause the machine
This prevents incorrect drilling operations from continuing.
Digital Documentation
Intelgic's system records all drilling operations for traceability.
Captured information may include:
- Product or component ID
- Drilling steps completed
- Orientation validation results
- Timestamp of each step
- Captured images for verification
This creates a digital record of SOP compliance, which is valuable for quality audits and process improvement.
Integration with Manufacturing Systems
The SOP monitoring system can integrate with existing factory systems.
Integration options include:
This allows production managers to monitor drilling operations across multiple workstations and production lines.
Benefits of AI-Based Drilling SOP Monitoring
Improved Drilling Accuracy
Ensures holes are drilled at the correct locations.
Eliminates Orientation Errors
Prevents drilling mistakes caused by incorrect part rotation.
Real-Time Error Detection
Issues are detected immediately during the process.
Increased Productivity
Reduces rework and scrap.
Better Process Traceability
Every drilling step is recorded digitally.
Applications in Door and Metal Component Manufacturing
This technology can be applied in:
It is particularly useful where parts must be rotated multiple times during drilling operations.
Drilling operations require precise positioning and correct orientation of components to meet engineering design requirements. Manual monitoring of these processes is difficult and prone to errors.
Intelgic's AI-powered camera monitoring system ensures that operators follow the correct Standard Operating Procedure during drilling operations. By verifying part placement, rotation, drilling sequence, and hole position, the system helps manufacturers maintain high product quality while reducing rework and production errors.
This intelligent monitoring solution enables manufacturers to transform traditional drilling workstations into smart, self-verifying production systems.
