Metal Sheet Inspection in a Running Production Line

Published on: Mar 02, 2026

team

Written by:Content team, Intelgic

AI-Powered Line Scan Vision System by Intelgic

Metal sheets are widely used in automotive, construction, appliance, aerospace, and heavy engineering industries. During rolling, coating, galvanizing, pickling, slitting, or stamping processes, metal sheets are continuously moving at high speed.

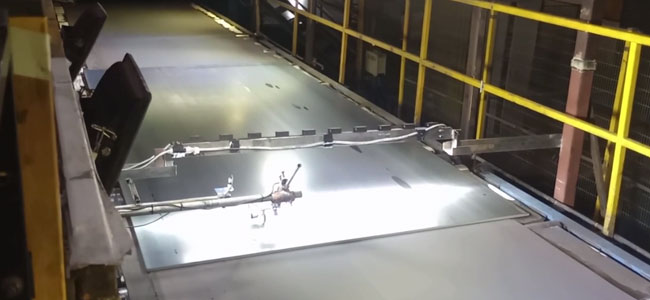

Vision System by Intelgic
Critical Quality Issues

Surface and dimensional defects such as scratches, dents, edge cracks, pinholes, scale marks, or coating irregularities can lead to:

  • Product rejection
  • Downstream assembly failure
  • Customer complaints
  • Warranty claims
  • Increased scrap and rework

The Challenge

Manual inspection is unreliable for high-speed running lines. Human inspectors cannot consistently detect micro-level surface defects at production speeds exceeding several meters per second.

To address this challenge, Intelgic's AI-powered line scan machine vision system enables real-time, continuous, full-width inspection of metal sheets in motion.

Why Line Scan Technology for Metal Sheet Inspection?

Metal sheets are continuous materials often produced in coils. Inspecting such materials requires:

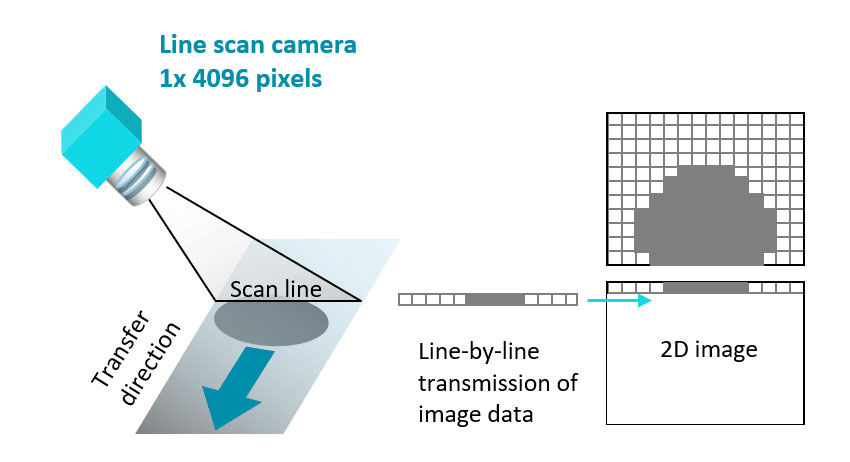

Line Scan Technology for Metal Sheet Inspection
Continuous image capture
High resolution across wide widths
No motion blur at high speed
Intelgic Industrial Line Scan Cameras
  • Capture one line of pixels at a time
  • Synchronize with line speed via encoder
  • Reconstruct high-resolution 2D images
  • Cover the full width of the strip
  • Micron-level defect detection
  • High-speed line compatibility

This Ensures:

No image distortion
Seamless inspection
Micron-level defect detection
Compatibility with high-speed lines

Common Defects in Metal Sheets

Metal sheet manufacturing can produce a wide range of defects:

Surface Defects
  • Scratches
  • Roll marks
  • Dents
  • Oil stains
  • Scale marks
  • Pits and pinholes
Structural Defects
  • Micro cracks
  • Edge cracks
  • Lamination defects
  • Delamination
Coating Defects
  • Uneven coating thickness
  • Peeling
  • Blisters
  • Coating voids
Dimensional Defects
  • Edge waviness
  • Camber
  • Surface flatness deviation

Intelgic's Imaging Architecture

Intelgic customizes the imaging setup based on surface finish, reflectivity, line speed, and width of metal sheet.

Lighting Strategies

Low-Angle Dark Field

Highlights scratches and cracks

Diffuse Dome Lighting

Reduces glare on reflective surfaces

Coaxial Lighting

Enhances fine surface texture visibility

Laser Profiling

Measures height variation and waviness

Mechanical Integration
Rigid vibration-controlled mounting Encoder synchronization Multi-camera array Industrial enclosure

AI-Powered Defect Detection

1
Continuous Image Acquisition

The line scan camera captures the metal strip line-by-line with perfect synchronization to production speed.

2
Image Reconstruction

High-resolution continuous image generated in real time from individual line scans.

3
Pre-Processing
Illumination normalization
Noise filtering
Reflection suppression
Contrast enhancement
4
AI Analysis (Live Vision AI Platform)
  • Vision Transformer networks
  • Convolutional neural networks
  • Deep anomaly detection
  • Surface anomaly detection
  • Crack segmentation
  • Scratch detection
  • Coating defect classification
  • Texture uniformity analysis
  • Multi-class classification

AI Training Data Includes:

Good sheet samples Known defect libraries Multiple lighting conditions Material-specific characteristics

Real-Time Classification & Response

For every detected defect, the system executes immediate actions:

Marks defect location
Categorizes severity
Records coordinates
Triggers PLC signal
Alarm triggers
Automatic coil tagging

Integration Options:

Reject marking system MES / ERP connectivity REST API integration Historical archive

3D & Dimensional Analysis

Optional Add-on

Intelgic can integrate laser profilers for comprehensive dimensional quality assessment:

  • Surface waviness measurement
  • Edge crack detection
  • Height deviation mapping
  • Thickness monitoring

Combining 2D + 3D imaging provides comprehensive quality assessment

Dashboard & Data Analytics

Intelgic provides a web-based dashboard displaying comprehensive quality metrics:

Defect Heat Maps

Visual defect distribution across the coil

Density Trends

Track defect rates over time

Quality Reports

Coil-based quality documentation

Key Benefits Include:

Root cause analysis
Roll wear identification
Preventive maintenance insights
Statistical process control

Deployment Configurations

Inline Full-Width Bridge

Complete inspection bridge spanning the entire production line width

High-Speed Tunnel

Multi-camera enclosed inspection tunnel for maximum throughput

Top + Bottom System

Simultaneous dual-surface inspection for complete coverage

Multi-Line Monitoring

Centralized AI monitoring for multiple production lines

All systems are scalable and customizable to the client's production rate

10 System Benefits

100% Continuous

No gaps in inspection coverage

Micron-Level

Detect smallest surface defects

High-Speed

Compatible with fast production

Automated Decisions

AI-powered quality control

Digital Traceability

Complete quality records

Reduced Scrap

Minimize waste and rework

Improved Efficiency

Boost production throughput and uptime

Why Intelgic?

Intelgic delivers complete turnkey systems including:

Line Scan Cameras

Industrial-grade high-resolution sensors

Industrial Lighting

Optimized for metal surface inspection

Mechanical Structure

Vibration-controlled mounting systems

PLC Controller

Seamless production line integration

GPU AI Server

High-performance processing unit

Dashboard Software

Intuitive web-based analytics

Complete AI-Powered Inspection Ecosystem

Intelgic does not just provide vision cameras — it provides a complete solution tailored for industrial metal processing lines.

Metal sheet manufacturing demands high-speed, high-accuracy inspection to maintain product quality and customer trust. Manual inspection cannot meet these requirements in modern industrial environments.

Intelgic's AI-powered line scan inspection system enables:
Real-time defect detection
High-resolution continuous inspection
Intelligent classification
Seamless industrial integration

By combining advanced imaging engineering with robust AI algorithms, Intelgic helps manufacturers achieve zero-defect production in running metal sheet lines.
