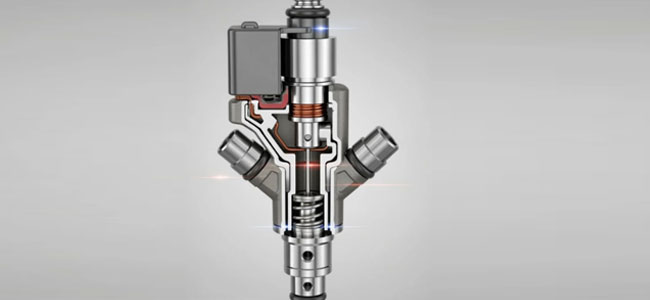

High-Precision Multi-Surface Defect Detection & Dimensional Validation
Automobile fuel injectors operate under extremely high pressure and tight tolerances. Their performance directly affects:
- Fuel atomization efficiency
- Engine combustion performance
- Emissions compliance
- Fuel economy
- Engine durability
Even minor defects in injector components — such as micro cracks, burrs, concentricity errors, or nozzle blockage — can lead to severe engine performance issues.
Given the precision required in automotive manufacturing, manual inspection is no longer sufficient. Intelgic's AI-powered machine vision inspection system delivers micron-level accuracy, 360° inspection, and real-time traceability for fuel injector components.

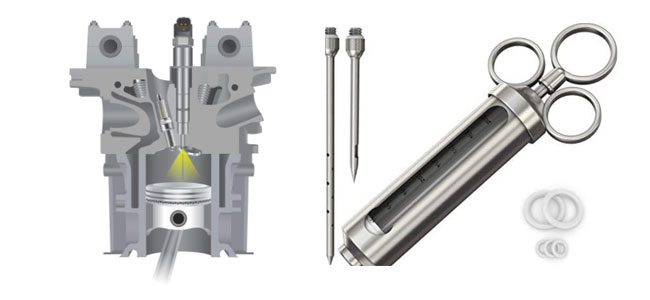

Critical Components in Fuel Injector Assembly
Key injector components requiring inspection include:
Nozzle body
Injector needle
Valve seat
Housing
Spring and precision machined sleeves
Threaded connectors
Each part must meet strict dimensional and surface quality standards.
Common Defects in Fuel Injector Parts
Surface Defects
Machining Defects
Dimensional Errors
Functional Defects
Because these defects are often microscopic, detection requires specialized imaging.
Inspection Challenges
Fuel injector inspection presents several complexities:
Highly reflective polished metal surfaces
Cylindrical geometries
Micro-sized nozzle holes
Multiple surfaces requiring inspection
Tight cycle time requirements
High-volume production
Standard camera systems cannot reliably detect these issues without customized lighting and motion systems.

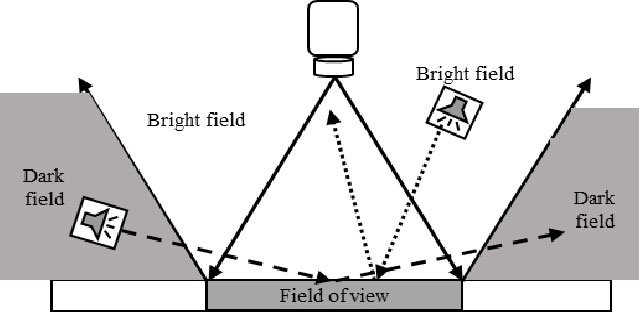

Intelgic's Advanced Imaging Architecture
Intelgic designs inspection systems combining:
Multi-Camera Setup
Captures top, side, and angled views simultaneously.
Low-Angle Dark Field Lighting
Enhances surface cracks and micro scratches.
Diffused Dome Lighting
Reduces glare from polished surfaces.
Coaxial Lighting
Improves contrast for engraved markings.
Telecentric Lenses
Ensures distortion-free dimensional measurement.
Laser 3D Profilers
Measure: Run-out, Concentricity, Surface flatness, Thread profile, Chamfer consistency
Rotary & Linear Motion Systems
Parts rotate or translate to enable full 360° inspection.
AI-Powered Inspection Workflow
Image Capture
High-resolution industrial cameras acquire images with synchronized encoder triggers.
Pre-Processing
- Reflection suppression
- Contrast enhancement
- Noise filtering
- Edge sharpening
AI-Based Analysis (Live Vision AI Platform)
Intelgic's AI performs:
The AI uses:
AI training includes:
- • Good parts dataset
- • Known defect samples
- • Batch variation examples
- • Lighting variation compensation
Key Inspection Capabilities
1. Micro Crack Detection
Pixel-level segmentation highlights crack paths invisible to human eyes.
2. Burr & Edge Validation
Identifies sharp edges affecting assembly and sealing.
3. Nozzle Hole Verification
Validates: Hole count, Diameter, Circularity, Alignment
4. Dimensional Measurement
2D + 3D integration enables: Outer diameter measurement, Concentricity analysis, Run-out measurement, Thread pitch validation, Chamfer angle verification
5. Text & Traceability Verification
OCR reading of: Serial numbers, Part codes, Laser markings
Real-Time Decision & Control
The system classifies each part:
Pass
Rework
Reject
Automatic actions include:
- PLC-based reject gate control
- Production stop trigger on abnormal defect rate
- Integration with MES/ERP
- REST API connectivity
Every inspection is digitally logged for traceability.
Dashboard & Quality Analytics
Intelgic provides an industrial dashboard showing:
Defect frequency trends
Machine-wise analysis
Batch-level statistics
AI confidence score
Image archive of rejected parts
Data analytics supports:
Deployment Configurations
Intelgic offers multiple deployment models:
Inline conveyor-based inspection
Robotic pick-and-inspect system
Rotary high-precision inspection station
End-of-line verification station
Each configuration is customized to match line speed and production volume.
Benefits of Intelgic's AI Inspection System
Micron-Level Accuracy
High-Speed Inline Inspection
360° Multi-Surface Coverage
Reduced Manual Inspection
Full Digital Traceability
Scalable Architecture
Why Intelgic?
Intelgic delivers:
This is not just defect detection — it is a complete intelligent quality assurance ecosystem for automotive manufacturing.
Fuel injector components demand absolute precision. Even minor defects can lead to engine inefficiency, increased emissions, and product recalls.
Intelgic's AI-powered machine vision inspection system ensures:
- Comprehensive 360° inspection
- Micron-level defect detection
- Real-time automated validation
- Data-driven process improvement
By combining advanced imaging, motion control, and AI analytics, manufacturers can achieve zero-defect standards and maintain global automotive compliance.
