AI-Based Color Shade & Design Inspection on Fabric Rolls
Published on: Feb 23, 2026
Written by:Content team, Intelgic
Automated Fabric Quality Control Using Intelgic’s Line Scan Vision System
In textile manufacturing, maintaining consistent color shade, design accuracy, and surface quality is critical. Fabric typically arrives in long rolls and is inspected using manual inspection stations where operators unroll and visually check for:
Color & Design Issues
- Color shade variation
- Design misalignment
- Print defects
Structural Defects
- Extra threads
- Stitching issues
- Holes and weaving defects
Limitations of Manual Inspection
- Fatigue reduces consistency
- Subtle shade variation goes unnoticed
- High-speed movement limits accuracy
- No digital traceability
- Limited data for process improvement
To overcome these challenges, Intelgic's AI-powered line scan inspection system automates color and design inspection with high-speed precision and consistency.
Why Line Scan Camera for Fabric Inspection?
Fabric moves continuously at high speed during inspection. Traditional area scan cameras struggle to capture long, continuous materials without distortion.

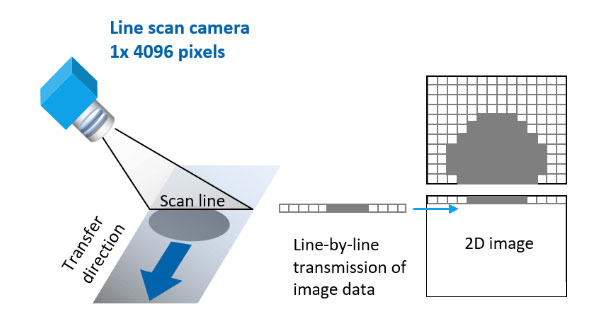

Intelgic uses Line Scan Camera Technology:
- Captures one line of pixels at a time
- Reconstructs a full high-resolution image as fabric moves
- Enables seamless inspection of long rolls
- Maintains high clarity at high speeds
No Motion Blur
Crystal clear images even at high speeds
Full-width Inspection
Complete fabric surface coverage
High Resolution
Pixel-level detail across entire surface
Imaging Architecture for Fabric Inspection
Intelgic designs a fully controlled inspection station including:
Uniform Diffused LED Lighting
Eliminates shadows and improves color consistency.
Precision Encoder Integration
Synchronizes camera capture with fabric movement.
Stable Mechanical Unwinding System
Ensures fabric tension stability.
Controlled Lighting Tunnel
Removes ambient light influence.
Lighting is calibrated to maintain color stability across production shifts.
AI-Based Color Shade Matching System
Color shade consistency is one of the biggest challenges in textile manufacturing. Even slight variation between batches can cause product rejection.
Golden Template / Master Shade Reference
Intelgic captures and stores a Master Color Image (Golden Template) under controlled lighting.
Color Matching Algorithms Include:
The AI learns acceptable tolerance ranges based on customer-defined quality standards.
Design & Pattern Inspection
Beyond color, the AI validates:
Print Alignment
Repeating Pattern Accuracy
Design Symmetry
Missing Design Elements
Warped Patterns
Registration Shift
The system compares live fabric design with:
Digital CAD Reference
Master Design Image
Pattern Periodicity Models
High Sensitivity Detection
Even minor design shifts are detected with high sensitivity.
Surface & Material Defect Detection
Intelgic's AI identifies various types of defects with high precision:
Weaving Defects
Surface Defects
Stitching Errors
AI Training Data
AI performs pixel-level anomaly detection trained on:
Good fabric samples
Known defect datasets
Multiple lighting variations
AI Processing Workflow
Continuous Image Acquisition
Line scan camera captures fabric movement.
Image Stitching
High-resolution fabric image reconstructed line by line.
Pre-Processing
AI Analysis (Live Vision AI Platform)
Intelgic's AI engine performs:
Real-Time Alert
System outputs:
Defect locations are marked on live monitor for operator reference.
Real-Time Dashboard & Analytics
Dashboard Features
Shade deviation trend analysis
Defect frequency mapping
Roll-wise quality summary
Operator shift comparison
Image archive with timestamps
Manufacturer Gains
Root cause identification
Dyeing process optimization
Reduced rework
Data-driven production control
Benefits of Intelgic's AI Fabric Inspection System
100% Continuous Inspection
No sample-based checking — full roll coverage.
High-Speed Operation
Compatible with fast textile lines.
Shade Accuracy
Precise master color matching.
Reduced Dependency on Manual Operators
Automated process reduces human error.
Digital Traceability
Stored roll-wise quality report.
Customizable Tolerance
Different tolerance levels for premium vs standard products.
Deployment Models
Intelgic provides:
Inline inspection on production line
Retrofit solution for existing manual inspection station
Standalone high-precision shade validation system
Multi-camera setup for wide fabric rolls
Why Intelgic?
Intelgic delivers:
Complete turnkey system (camera + lighting + motion + AI)
Advanced line scan imaging expertise
Robust shade matching algorithms
Real-time defect visualization
Scalable AI architecture
Integration with ERP/MES systems
This is not just inspection — it is intelligent textile quality automation.
Manual fabric inspection is no longer sufficient for modern textile manufacturing where consistency, speed, and precision are essential.
Intelgic's AI-powered line scan inspection system transforms textile quality control by:
With high-speed imaging and intelligent AI analytics, manufacturers can ensure consistent fabric quality, reduce waste, and improve customer satisfaction.
