Detecting Defects in Fuel Injector Metal Parts Using Machine Vision & Intelgic's AI
Published on: Mar 04, 2026
Written by:Content team, Intelgic
Fuel injectors are among the most precision-critical components in automotive engines. Modern injectors operate under extremely high pressure, requiring micron-level tolerances and flawless surface integrity. Even minor defects in metal injector components can lead to:
Solution: Traditional manual inspection methods cannot reliably detect micro-level defects on highly reflective metal surfaces. Intelgic's AI-powered machine vision system delivers superior accuracy, consistency, and traceability.

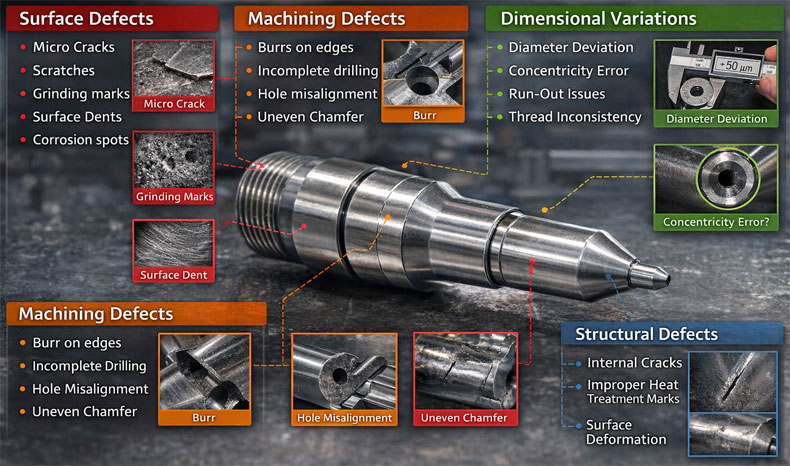

Common Defects in Fuel Injector Metal Parts
Fuel injector parts such as nozzles, needles, housings, and valve components can develop a variety of defects that must be identified at micron precision:
Surface Defects
- • Micro cracks
- • Scratches
- • Grinding marks
- • Surface dents
- • Corrosion spots
Machining Defects
- • Burrs on edges
- • Incomplete drilling
- • Hole misalignment
- • Uneven chamfer
Dimensional Variations
- • Diameter deviation
- • Concentricity errors
- • Run-out issues
- • Thread profile inconsistencies
Structural Defects
- • Internal cracks
- • Improper heat treatment marks
- • Surface deformation

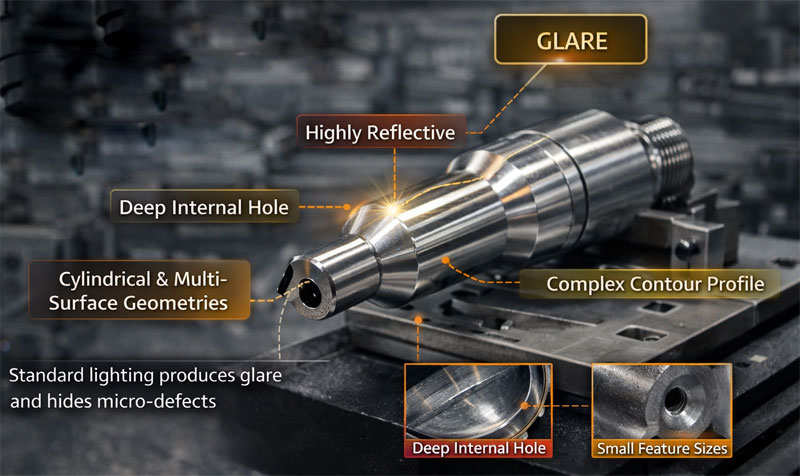

Imaging Challenges with Metal Injector Parts
Fuel injector components present major inspection challenges:
Highly reflective polished surfaces
Cylindrical and multi-surface geometries
Small feature sizes
Deep internal holes
Complex contour profiles
Standard lighting produces glare and hides micro-defects
Intelgic's Advanced Imaging Strategy
Intelgic designs a customized inspection architecture combining:
-
Dark Field Low-Angle Lighting
Enhances micro scratches and cracks.
-
Diffused Dome Lighting
Reduces harsh reflections from polished surfaces.
-
Telecentric Lens System
Ensures distortion-free dimensional measurement.
-
Laser 3D Profiling
Detects height variation, surface unevenness, and run-out.
-
Precision Rotary Motion Stage
Rotates cylindrical injector parts while cameras capture full 360° images.
-
Multi-Camera Geometry
Captures top surface, side surface, internal hole geometry, and thread profile.
Lighting geometry and motion control are engineered according to part geometry and tolerance requirements.
Intelgic's AI-Powered Inspection Workflow
Step 1: High-Resolution Image Acquisition
Industrial area scan or line scan cameras capture detailed images with micron-level clarity.
Step 2: Image Pre-Processing
- • Reflection suppression
- • Contrast enhancement
- • Background isolation
- • Noise filtering
Step 3: AI Analysis
Live Vision AI 2.0 Platform applies:
- • Vision Transformer backbone networks
- • Convolutional segmentation models
- • Anomaly detection algorithms
- • Multi-class defect classification
AI Learning Data
AI learns from large datasets of good parts, known defect samples, controlled lighting variations, and different machining batches.
Types of AI Inspection Performed
1. Micro Crack Detection
Pixel-level segmentation highlights crack paths.
2. Burr & Edge Analysis
Detects sharp burrs that can impact assembly.
3. Surface Roughness Consistency
AI compares texture pattern uniformity.
4. Nozzle Hole Validation
Verifies:
- • Hole presence
- • Hole diameter
- • Circularity
- • Alignment
5. Dimensional Measurement
Integrated 2D/3D measurement:
- • Outer diameter
- • Length
- • Thread pitch
- • Concentricity
Real-Time Inspection & Decision Making
Each inspected injector part is classified:
Pass
Part meets all specifications
Rework
Minor defects can be corrected
Reject
Part must be scrapped
System capabilities:
- PLC output trigger
- Automated reject mechanism
- Batch tracking
- Integration with MES/ERP
- REST API connectivity
- Image archive & traceability
Dashboard & Analytics
Intelgic's inspection dashboard provides:
- Defect frequency trends
- Machine-wise defect mapping
- Heat maps of defect regions
- Production batch comparison
- AI confidence scores
This helps manufacturers:
- Identify tooling wear
- Optimize machining parameters
- Reduce scrap
- Improve process capability (Cp/Cpk)
Deployment Models
Intelgic offers flexible configurations:
Inline conveyor inspection
Robotic pick-and-inspect system
Rotary precision inspection station
Fully automated closed-loop quality system
Benefits of Intelgic's AI Inspection System
Micron-Level Precision
Reliable detection of micro-level defects
High-Speed Processing
Compatible with high-volume automotive production
Consistency
Eliminates operator subjectivity
Traceability
Every part is digitally recorded
Scalable Architecture
Expandable from single station to multi-line deployment
Why Intelgic?
Intelgic delivers:
Complete turnkey solution
Camera + lighting + motion + AI
Custom mechanical design & automation integration
Engineered for your specific application
Multi-surface inspection capability
360° comprehensive analysis
2D + 3D integrated measurement
Complete dimensional analysis
GPU-based real-time AI inference
Instant defect detection and classification
Industrial-grade PLC integration
Seamless factory ecosystem connectivity
"This is not just defect detection — it is a complete intelligent quality ecosystem."
Intelgic Vision Systems
Fuel Injector Quality Assurance
Conclusion
Fuel injector metal components demand absolute precision. Even minor defects can lead to severe functional failures in automotive applications.
Intelgic's AI-driven machine vision system enables:
- Automated 360° inspection
- Micron-level defect detection
- Real-time classification
- Data-driven quality optimization
By integrating advanced imaging, motion control, and intelligent AI analytics, manufacturers can achieve higher reliability, reduced waste, and zero-defect production standards.
