Inspecting the Inner Wall of Tubes Using Customized Imaging and AI-Powered Software
Published on: Apr 30, 2026
Written by:Content team, Intelgic
Inspecting the inner walls of tubes, particularly metal or plastic tubes, is a critical process in industries such as aerospace, automotive, and oil & gas, where precision and quality are essential. The inherent challenges of tube inspection—small inner diameters (ID), long lengths, and the need for high-resolution imaging—demand advanced, customized solutions. Combining cutting-edge imaging devices with AI-powered inspection software and custom electromechanical systems, manufacturers can achieve unparalleled accuracy and automation.
Challenges in Tube Inspection
The inspection of a tube's inner wall presents unique challenges:
Small Inner Diameters (ID)
Tubes with IDs smaller than 50 mm are difficult to inspect using conventional methods. IDs smaller than 10 mm require specialized cameras that can fit within the narrow space.
Long Tube Lengths
Long tubes require imaging devices to traverse the length uniformly to ensure consistent imaging quality.
Defect Size and Visibility
Micron-level defects, such as cracks, corrosion, or surface irregularities, demand high-resolution imaging.
Surface Properties
Shiny or reflective inner surfaces can cause glare, making defect detection challenging without proper lighting.
Key Factors in Tube Inspection
To ensure effective inspection, several critical factors must be considered:

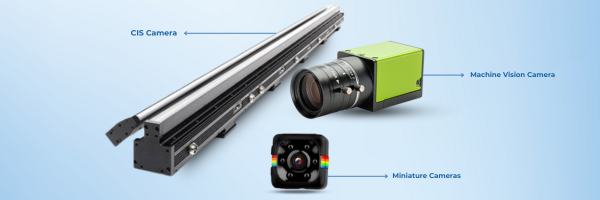

Imaging Device Selection
The choice of imaging device depends on the tube's ID, defect size, and length. Here are the most commonly used imaging technologies:
Customized CIS Camera Module
- Length Customization: CIS modules can be customized to match the tube's length, making them ideal for long tubes.
- High-Resolution Sensors: For defect sizes below 10 micrometers, CIS cameras with 16k line-scan sensors are necessary.
- Detailed Imaging: CIS modules capture detailed images at close proximity, ensuring high accuracy.
Machine Vision Camera
- Suitable for tubes with an ID greater than 40–45 mm.
- The camera diameter can be customized to fit the tube for optimal imaging.
- Requires proper lighting to ensure clear visuals of the inner wall.
Specialized Miniature Cameras
- For IDs smaller than 20 mm, and especially below 10 mm, miniature cameras with compact image sensors are required.
- These cameras are designed to navigate narrow spaces while maintaining high imaging quality.

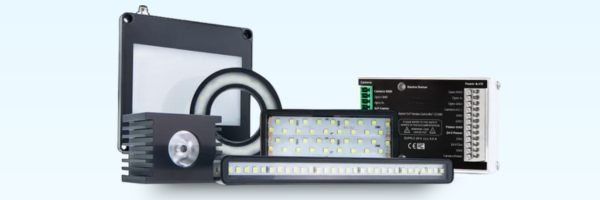

Lighting System Design
Lighting is critical for capturing detailed images of the inner wall. Key considerations include:
Proper Illumination
Lighting systems must provide sufficient illumination to highlight defects, especially in narrow tubes.
Compatibility with Sensor Size
Smaller sensors require higher-intensity light for proper imaging. Larger sensors may work with lower-intensity light but may lack the resolution needed for micron-level defects.
Lighting Angle
Adjusting the lighting angle minimizes glare and enhances contrast, especially for shiny or reflective inner surfaces.
Compact Design
The lighting system must fit seamlessly with the camera and be small enough to enter the tube.

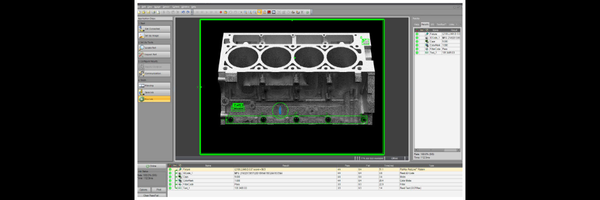

Defect Detection AI Software
AI-powered defect detection software is the backbone of the inspection process. Its capabilities include:
Advanced AI Algorithms
Analyze images from the camera to identify and classify defects such as scratches, cracks, and corrosion. Ensure accurate detection even with small IDs and complex geometries.
Training for Specific Defects
The software can be trained with datasets to recognize defects unique to the material or manufacturing process.
Camera Compatibility
The software should support the interface of the selected camera, whether it's USB 3.0, GigE, or MIPI.
Integration with Electromechanical Systems
Seamless integration with the mechanical setup ensures smooth automation and inspection workflow.

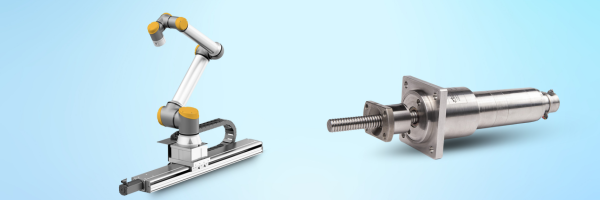

Electromechanical Systems for Tube Inspection
Automating tube inspection requires a customized electromechanical system tailored to the specific application. Key features include:
Uniform Movement
A system to insert the imaging device at a uniform speed ensures consistent imaging quality along the tube's length.
Adjustability
The system should accommodate tubes of varying sizes and lengths and function effectively in challenging environments.
High Throughput
Fully automated systems enable high-speed inspection of large volumes, reducing manual effort and improving efficiency.
Inspection Process: Step-by-Step
System Setup
Select and configure the imaging device (CIS, machine vision, or specialized camera) based on the tube specifications. Design the lighting system to match the camera and defect detection requirements. Integrate the imaging and lighting systems into the electromechanical setup.
Calibration
Calibrate the system to ensure accurate defect detection, accounting for factors like lighting intensity, camera position, and tube length.
Data Capture
Insert the imaging device into the tube using the electromechanical system. Capture high-resolution images or videos of the inner wall as the device moves through the tube.
AI Analysis
Process the captured data using AI-powered software. Detect and classify defects in real time, providing immediate feedback.
Reporting and Action
Generate detailed inspection reports, including defect locations, images, and classifications. Use insights to address defects, improve processes, and ensure product quality.
Applications of Tube Inspection
Customized imaging and AI-powered inspection systems are essential in various industries:
Aerospace
Inspect engine components and hydraulic tubes for structural integrity.
Automotive
Ensure the quality of exhaust systems, brake lines, and fuel delivery systems.
Oil and Gas
Detect corrosion, cracks, and buildup in pipelines and casing tubes.
Medical Devices
Inspect narrow, precision-engineered tubes used in surgical instruments and implants.
Heavy Machinery
Verify the quality of hydraulic and pneumatic tubes for durability and safety.
Intelgic's Live Vision AI: A Comprehensive Solution for Inner Wall Tube Inspection
Intelgic's Live Vision AI software and its complete suite of customized imaging devices and electromechanical systems provide an end-to-end solution to address these challenges, making it the ideal choice for automating tube inspection processes.
Live Vision AI Software
- Real-Time Defect Detection: Processes continuous video streams from imaging devices in real-time, detecting surface anomalies such as cracks, scratches, pitting, and burrs down to the micron level.
- Customizable AI Algorithms: Specifically designed for anomaly detection and can be trained to recognize defects unique to a manufacturer's requirements.
- Camera Compatibility: Supports USB 3.0, GigE, or MIPI interfaces, ensuring compatibility with specialized cameras required for narrow or complex tubes.
Lighting Solutions
- High-Intensity Lighting: For small sensors requiring brighter light for capturing detailed images in narrow spaces.
- Adjustable Lighting Angles: Reduce glare and improve contrast on shiny or reflective surfaces.
- Compact Integration: Lighting solutions are compact, allowing seamless integration with imaging devices for smooth insertion into the tube.
Customized Imaging Devices
CIS Imaging Sensors
Ideal for inspecting long tubes. Their length can be customized to match the tube size. Combined with 16k line-scan sensors for micron-level defect detection.
Machine Vision Cameras
For tubes with IDs greater than 40–50 mm. Customizable in size and work seamlessly with Live Vision AI to deliver detailed inspection results.
Specialized Miniature Cameras
For tubes with IDs smaller than 20 mm or less than 10 mm. Compact imaging devices navigating narrow spaces while maintaining image quality.
Electromechanical System
Why Intelgic's Solution is the Best Fit for Tube Inspection
Comprehensive End-to-End Solution
Provides not just software but also imaging devices and mechanical systems.
Customizable to Specific Needs
Every aspect is tailored to meet the unique requirements of the manufacturer.
Micron-Level Precision
Reliably detect the smallest defects, ensuring the highest quality standards.
Real-Time Performance
Delivers real-time defect detection and analysis, reducing downtime.
Adaptable Across Industries
Versatile enough to handle automotive, aerospace, oil and gas, and medical applications.
Inspecting the inner walls of metal tubes is a complex yet essential task in industries requiring high precision. By combining customized imaging solutions—such as CIS modules, machine vision cameras, and specialized miniature cameras—with AI-powered defect detection software, manufacturers can overcome the challenges of narrow IDs, long lengths, and micron-level defects.
Coupled with customized electromechanical systems, these solutions enable efficient and automated inspection processes, ensuring product quality and reliability in critical applications. With ongoing advancements in imaging technology and AI, tube inspection systems will continue to evolve, offering even greater accuracy, flexibility, and efficiency for manufacturers worldwide.
