Precise Metal TMT Bar Counting on Chain Conveyor Using Machine Vision AI

Published on: May 12, 2025

Precise Metal TMT Bar Counting on Chain Conveyor Using Machine Vision AI

In today’s fast-paced construction and manufacturing industries, Thermo Mechanically Treated (TMT) bars are essential for ensuring structural strength and reliability. As production demands increase, accurate counting of TMT bars during manufacturing and dispatch becomes a critical aspect of maintaining efficiency, inventory accuracy, and quality standards. Traditional approaches, such as manual counting or basic sensor systems, often fall short in high-speed, high-volume environments. Machine Vision AI, powered by advanced imaging technologies, offers a precise, real-time, and scalable solution for automated TMT bar counting on chain conveyors — elevating operational performance and reliability.



Challenges in Traditional TMT Bar Counting

 The process of counting metal bars on a moving chain conveyor is complex due to several challenges:

• High Speeds: Bars move quickly along conveyors, leaving little time for accurate human or sensor-based counts.

• Overlapping and Stacking: TMT bars often overlap or are stacked closely, making visual distinction difficult.

• Inconsistent Lighting: Industrial environments often have poor or variable lighting, affecting visual clarity.

• Human Error: Manual counting is slow and prone to mistakes, especially during long shifts.

• Lack of Real-Time Feedback: Traditional systems lack instant feedback, causing delays and miscounts that disrupt the workflow.



How Machine Vision Cameras, Illumination, and AI Software Address these Challenges

Modern Machine Vision AI solutions are revolutionizing industrial automation by delivering reliable and accurate TMT bar counting in demanding production environments. The key components working in synergy include:

High-Resolution Machine Vision Cameras:

Equipped with cutting-edge imaging sensors, high-resolution industrial cameras are engineered to capture fast-moving TMT bars with remarkable detail and clarity. These cameras operate seamlessly in dynamic production environments, maintaining performance even in the presence of dust, vibrations, fluctuating lighting, and other industrial interferences. Their ability to deliver sharp, high-fidelity images forms the foundation for accurate detection, analysis, and counting within Machine Vision AI systems.

Advanced Illumination Systems:

Specialized lighting solutions are integral to the performance of machine vision systems in industrial environments. Techniques such as structured lighting, backlighting, and coaxial illumination are employed to create uniform, high-contrast visual conditions. These methods effectively minimize visual noise such as shadows, glare, and reflections caused by metal surfaces or uneven surroundings. By enhancing edge definition and surface contrast, advanced illumination significantly improves the system's ability to detect, distinguish, and count individual TMT bars with high precision—even when bars are closely spaced or partially obscured..


AI-Powered Image Processing Software:

At the core of the automated counting system lies advanced AI-driven image processing software, built on deep learning frameworks. This intelligent software analyzes high-resolution images in real time, learning to recognize and differentiate individual TMT bars with remarkable precision—even in complex scenarios involving overlapping bars, irregular spacing, or unpredictable movement. By continuously adapting to production variability and environmental changes, the AI system maintains consistent accuracy and reliability. It not only detects but also interprets subtle visual patterns, making it highly effective in dynamic, high-speed manufacturing environments.

Edge Computing for Real-Time Performance:
Smart cameras and edge devices process visual data locally, eliminating the need for cloud transmission. This enables ultra-low-latency decision-making, instant feedback, and improved system responsiveness—critical for high-speed production lines.

Seamless Integration with PLC/SCADA Systems:
Machine Vision AI platforms are designed to integrate smoothly with existing PLC and SCADA infrastructures. This allows for automated data logging, real-time reporting, and the triggering of control actions based on bar counts, thereby streamlining overall operational workflows.

The Counting Process in Detail:

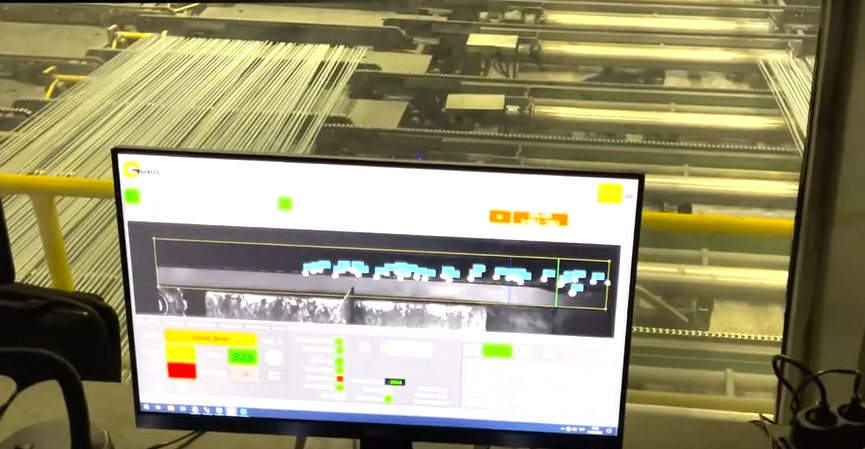

1. Image Acquisition: Cameras are installed above or beside the conveyor to continuously capture images as bars pass.

2. Preprocessing: AI software normalizes the image using filters and lighting adjustments to enhance edge detection.

3. Object Detection: Using neural networks, the software identifies the contours and edges of individual bars.

4. Bar Segmentation: Overlapping bars are segmented using AI models trained on thousands of visual scenarios.

5. Counting Logic: The system applies counting logic based on length, width, shape, and orientation of the bars.

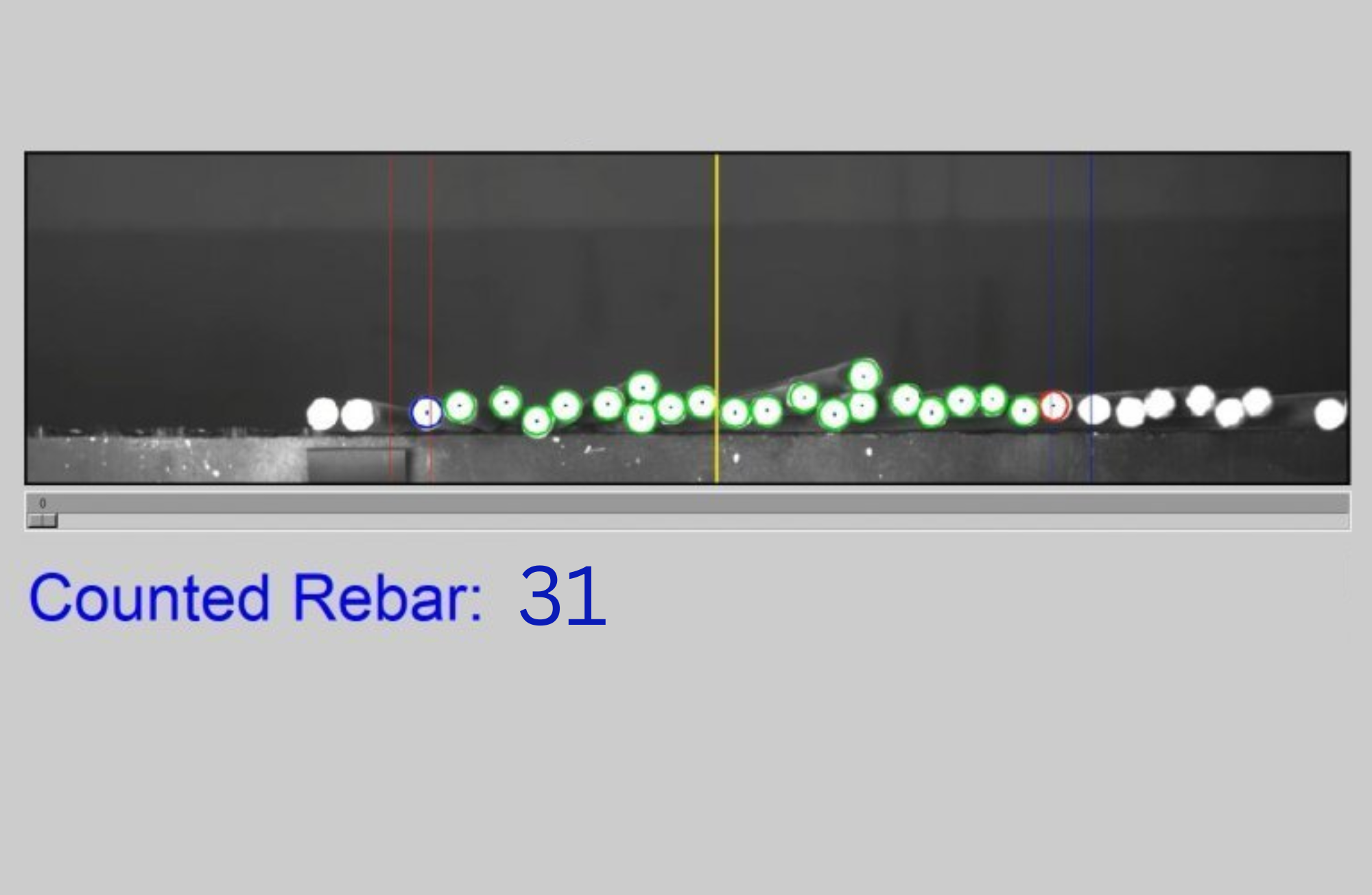

6. Output and Reporting: The count is displayed in real-time on an HMI or sent to a database/ERP system for record-keeping.

Advantages of Machine Vision AI in TMT Bar Counting

• High Accuracy
  Machine Vision AI delivers exceptional precision, consistently achieving over 98% counting accuracy—even under challenging conditions such as overlapping bars, inconsistent spacing, or varying lighting. Its ability to adapt to real-time production variables ensures reliable performance across shifts and product batches.
• Real-Time Processing
  By analyzing visual data instantaneously, the system provides immediate feedback and count validation. This capability minimizes delays, prevents bottlenecks, and supports uninterrupted workflow, which is crucial in high-speed manufacturing environments.
• Scalability
  Machine Vision AI solutions are inherently flexible and can be tailored to accommodate a wide range of TMT bar dimensions, production speeds, and conveyor system configurations. This makes them suitable for both small-scale operations and large industrial setups.
• Low Maintenance Requirements
  Unlike traditional mechanical sensors, vision-based systems have minimal moving parts, reducing the risk of wear, physical damage, and system downtime. Their robust design contributes to long-term operational reliability and reduced maintenance costs.
• Enhanced Operational Efficiency
  Automation through AI significantly reduces the need for manual counting, minimizing the risk of human error and increasing overall throughput. This allows personnel to focus on higher-value tasks while maintaining consistent productivity levels.
• Improved Traceability
  Seamless integration with ERP, MES, or SCADA systems enables comprehensive tracking of production data. Each batch of TMT bars can be logged, monitored, and traced from manufacturing to dispatch, supporting quality assurance and regulatory compliance.



Applications in Industry

Construction Industry
TMT bars reinforce concrete structures such as buildings, bridges, roads, and dams, offering strength and flexibility to withstand high stress and pressure.

Steel Manufacturing
Used in the production of steel frames, machinery, and supports, TMT bars are essential components in various structural applications.

Infrastructure and Civil Engineering
In large-scale projects like highways and tunnels, TMT bars provide the tensile strength needed for durability and safety.

Automotive Industry
TMT bars are used in manufacturing high-strength components and frames that require exceptional durability and resilience.

Oil and Gas Industry
TMT bars ensure the structural integrity of rigs, pipelines, and platforms in harsh environmental conditions.

Power Plants
In power plant construction, TMT bars reinforce key structures like reactors and turbines to withstand extreme conditions.

Custom Fabrication
TMT bars are employed in custom fabrication for specialized components requiring specific strength and specifications.



Intelgic's Unique Edge in TMT Bar Counting

Intelgic sets itself apart by combining cutting-edge  machine vision AI and industrial automation expertise to provide highly reliable and efficient TMT bar counting solutions:

• Live Vision AI Platform
  With real-time image processing powered by edge-AI and cloud analytics, Intelgic ensures fast, accurate TMT bar counting that meets the demands of high-speed production environments.
• Custom AI Model Training
  Intelgic tailors AI models to specific conveyor setups and TMT bar types, delivering unmatched precision and adaptability for diverse industrial needs.
• Seamless Integration
  Designed for simplicity, Intelgic’s solution easily integrates with PLCs, SCADA systems, and various conveyor configurations, ensuring smooth deployment with minimal disruption.
• Proven Track Record
  Intelgic’s solutions have been successfully implemented in steel plants, where they consistently count thousands of TMT bars daily at industrial speeds, ensuring reliability and performance under demanding conditions.
• Comprehensive After-Sales Support
  Intelgic offers ongoing support and remote diagnostics, ensuring continuous model optimization and maintaining peak performance over time.

Machine Vision AI has transformed TMT bar counting on chain conveyors, replacing outdated manual and sensor-based methods with smart, real-time, and highly reliable systems. By combining high-performance cameras, advanced illumination, and AI-driven software, manufacturers can achieve remarkable improvements in accuracy, speed, and traceability. Intelgic’s state-of-the-art solutions lead this industry shift, providing scalable automation that meets the demands of modern manufacturing.

Get in touch with Intelgic today to discover how our cutting-edge solutions can enhance your production efficiency and precision.
