Accurate Steel Sheet Measurement in Cut-to-Length Process Using Machine Vision AOI

Accurate Steel Sheet Measurement in Cut-to-Length Process Using Machine Vision AOI

Published on: Jun 27, 2025

team

Written by: Team Intelgic

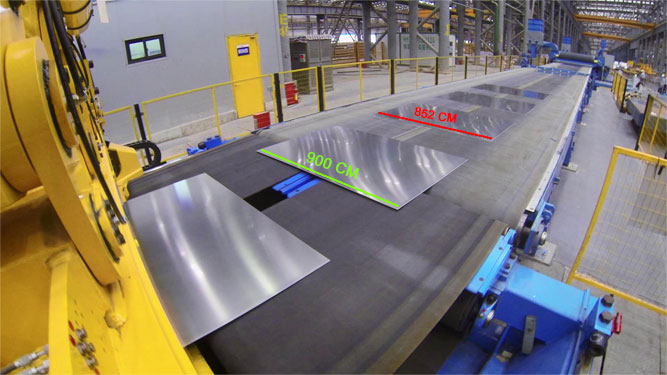

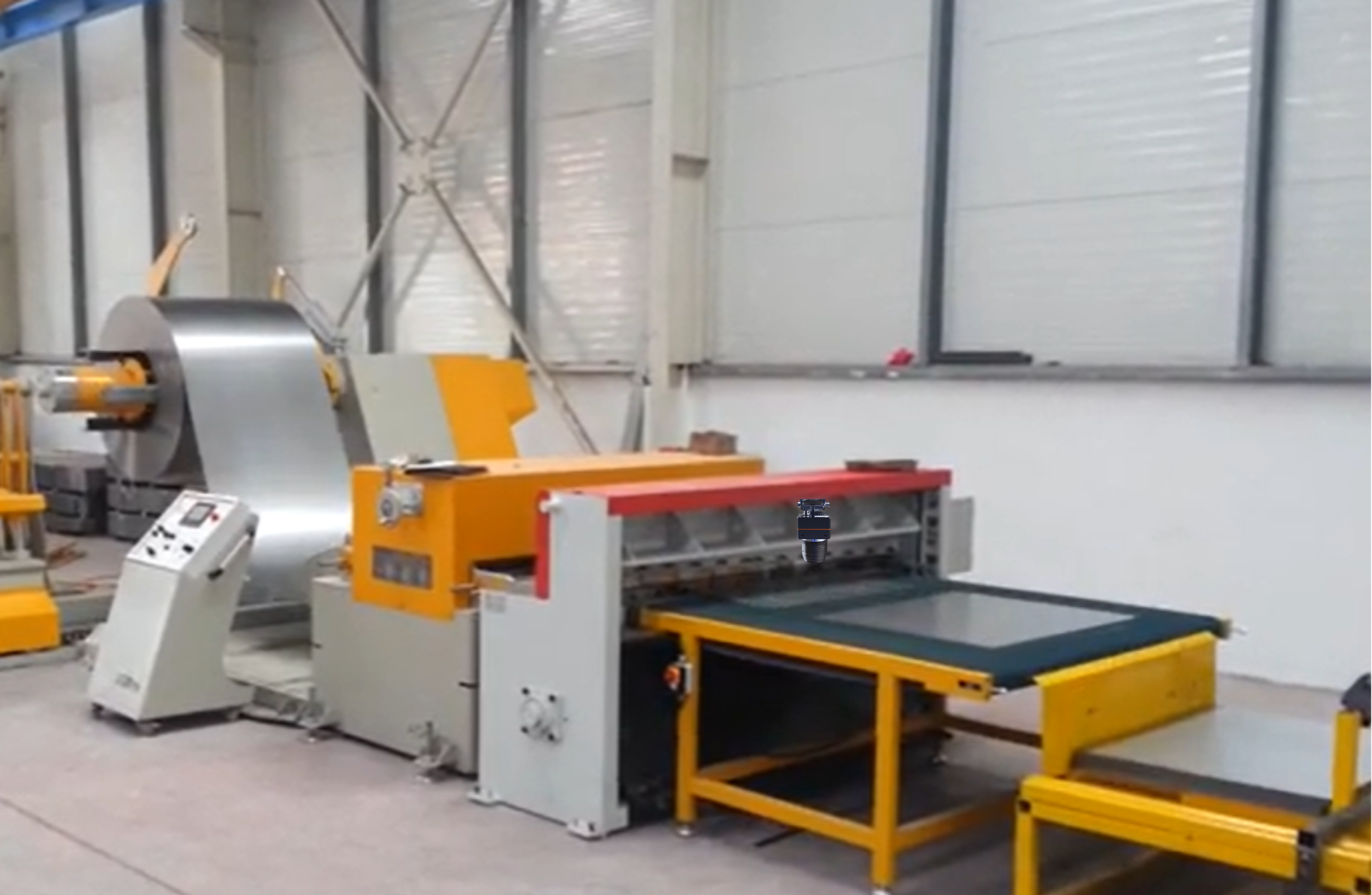

The cut-to-length (CTL) operation is a critical step in steel sheet fabrication, where large coils of steel are uncoiled, leveled, and cut into precise lengths to meet specific manufacturing or application requirements. This process ensures that steel sheets conform to exact dimensional standards before they move to downstream operations or are delivered to customers.

With increasing demand from industries such as automotive, aerospace, construction, and heavy equipment manufacturing, the need for high-precision steel sheets has never been greater. Even minor deviations in length or width can lead to product rejection, excess scrap, rework, and costly production delays — making dimensional accuracy essential to maintaining both quality and operational efficiency.



Limitations of Traditional Measurement Methods in Cut-to-Length Steel Sheet Processing

Conventional measurement tools—such as manual calipers, contact gauges, and basic inline systems—often fall short in the demanding environment of high-speed steel sheet production. Key limitations include:

  • Human Error and Inconsistency
    Manual measurements are prone to variation between operators, leading to inconsistent results and reduced reliability in quality control.

  • Inability to Keep Pace with High Line Speeds
    Traditional measurement techniques are not designed for continuous, fast-moving production lines, making real-time monitoring difficult and often impractical.

  • Environmental Interference
    Factory conditions such as dust, oil mist, surface heat, and changing ambient light can interfere with measurement accuracy and consistency.

  • Vibrational Challenges
    Mechanical vibrations from high-speed cutting and conveyor systems introduce instability during the measurement process, causing fluctuating or inaccurate readings—especially when the steel sheet is in motion.

  • Difficulty with Irregular or Reflective Surfaces
    Steel sheets with uneven textures or reflective finishes can be difficult to measure accurately using conventional methods, as surface characteristics can distort measurements.

  • Delayed Detection of Dimensional Deviations
    Traditional methods often identify defects only after the sheet has been cut or a full batch is completed, increasing the risk of scrap, rework, and production delays.

The Robust Solution: Machine Vision AOI for Cut to Length Dimensional Measurement

Machine Vison AOI  offers a state-of-the-art solution to these challenges by automating the entire dimensional measurement process during CTL operations.By integrating high-speed cameras, precision optics, intelligent lighting, and advanced AI software, Machine Vision AOI system enables real-time, non-contact measurement of steel sheet dimensions with unmatched accuracy and efficiency.

Key Components of Machine Vision AOI System

Machine Vision Camera

The line scan camera is the cornerstone of our Machine Vision AOI system, purpose-built for high-speed inspection in continuous production environments like cut-to-length steel sheet processing. Unlike traditional area cameras that capture full-frame snapshots, the line scan camera captures one line of pixels at a time, assembling a complete, ultra-high-resolution image as the steel sheet moves along the line.

This scanning method offers several advantages:

  • Seamless imaging of moving materials without motion blur

  • Exceptional resolution and accuracy over long sheet lengths

  • Consistent edge detection, even on reflective or textured steel surfaces


By enabling pixel-perfect dimensional analysis in real time, the line scan camera ensures precise measurements of length, width, and edge alignment—even at the highest production speeds. Its continuous capture capability and superior image clarity make it the ideal choice for dynamic, precision-critical applications like steel sheet cut-to-length operations, where measurement accuracy directly impacts quality and yield.

Line Lighting System

The line lighting system, featuring a precision-engineered backlighting setup, is essential for enabling the high-resolution performance of the line scan camera during steel sheet inspection. Line Lighting system  works by placing a strong, uniform light source behind the moving steel sheet, creating a sharp silhouette of the sheet’s edges as it passes in front of the camera. This technique provides excellent contrast, allowing for highly accurate edge detection and dimensional measurement even at very high line speeds.

In combination with the line scan camera, this lighting system delivers crystal-clear, shadow-free illumination across the full width of the sheet. This uniform light eliminates issues caused by ambient variations, surface glare, or uneven reflections, making it especially effective for inspecting reflective, glossy, or irregular steel surfaces.

By ensuring consistent, high-contrast imaging under dynamic conditions, the line lighting system plays a vital role in achieving pixel-level accuracy and repeatable measurement performance in cut-to-length operations.



AI Vision Software – Precision-Controlled Dimensional Analysis

The AI Vision Software is the analytical engine of the AOI system, designed to ensure dimensional compliance within tight industrial tolerances. Its core capabilities include:

  • High-Precision Dimensional Measurement
    Utilizes advanced image processing algorithms to calculate critical parameters such as sheet length, slit width, and edge alignment, maintaining strict conformance to user-defined tolerances.

  • Real-Time Tolerance Monitoring
    Continuously compares live measurements against preconfigured dimensional tolerances, enabling immediate identification of out-of-spec conditions during the cut-to-length process.

  • Instant Deviation Alerts
    Generates real-time visual or audible notifications when any measurement falls outside the acceptable tolerance range, allowing prompt intervention before further processing.

  • Self-Adaptive Analysis
    Incorporates machine learning capabilities to enhance measurement reliability over time, especially in environments with varying sheet textures, reflective surfaces, or changing production speeds.

  • Consistent Performance Under Industrial Conditions
    Delivers reliable output despite challenges such as vibration, heat, or fluctuating lighting, ensuring stable measurement accuracy throughout production.


Production Efficiency and Quality Assurance
Supports tight quality control by preventing defective material from proceeding downstream, reducing scrap, minimizing rework, and ensuring compliance with customer specifications.

Workflow of the AOI System in Cut-to-Length Operations

The Automated Optical Inspection (AOI) system operates in a synchronized sequence to ensure continuous, high-precision dimensional measurement during the cut-to-length process. Below is a step-by-step overview of how the system functions:

  1. Steel Sheet Entry
    The process begins as a steel coil is uncoiled and the sheet feeds into the line. The material moves continuously toward the cutting section at a controlled line speed.

  2. Encoder Synchronization
    A high-resolution rotary encoder, mounted on the conveyor or roller, precisely tracks the linear movement of the steel sheet. It provides accurate positional feedback to the AOI system, enabling synchronized image capture and length measurement in real time.

  3. Activation of Line Lighting System
    As the sheet passes under the inspection zone, the line lighting system—featuring high-intensity backlighting—activates to ensure consistent and glare-free illumination across the sheet surface and edges. This uniform lighting is essential for capturing high-contrast images, regardless of surface texture or reflectivity.

  4. Real-Time Image Capture with Machine Vision Camera
    The line scan camera, guided by encoder signals, captures continuous high-resolution image slices as the steel sheet moves. These slices are seamlessly stitched together into a complete image, enabling pixel-accurate edge and surface analysis without motion blur.

  5. AI-Based Image Analysis and Dimensional Measurement
    The AI Vision Software processes the stitched images in real time, accurately calculating sheet length, width, and edge alignment. The software cross-checks these measurements against preconfigured dimensional tolerances.

  6. Deviation Detection and Immediate Alerts
    If the software detects any deviation from set tolerances—such as overcutting, width inconsistencies, or edge irregularities—it instantly generates visual or audible alerts on the operator interface.

  7. PLC Integration for Automatic Response
    For advanced setups, the system can be integrated with a Programmable Logic Controller (PLC). If the PLC supports the required communication protocols and bandwidth, it can execute real-time corrective actions such as stopping the line, marking faulty sheets, or triggering automated rejection mechanisms.



Data Logging and Traceability
All measurement results, encoder readings, and deviation logs are automatically recorded. This ensures full traceability, historical analysis, and support for quality audits and continuous process improvement.

Advantages of Machine Vision AOI in Cut-to-Length Operations

  • Precision: Micron-level measurement accuracy with no contact, even on high-gloss or reflective surfaces.

  • Speed: Real-time processing keeps pace with modern high-speed production lines.

  • Consistency: Eliminates human error, ensuring repeatable and objective measurements.

  • Early Error Detection: Instant alerts allow proactive adjustments, minimizing scrap and downtime.

  • Traceability: Automated logging and reporting provide full visibility into production quality.


Seamless Integration: Easily connects with existing PLC systems and plant infrastructure.

Intelgic’s Expertise in Cut-to-Length Dimensional Measurement

Intelgic brings deep expertise in Machine Vision AOI, offering cutting-edge solutions specifically tailored for the cut-to-length (CTL) process in steel sheet manufacturing. With a strong foundation in optics, robotics, AI engineering, and industrial automation, our team delivers high-precision systems that address the demanding requirements of modern production environments.

Intelgic’s Live Vision platform, integrated with advanced Automated Optical Inspection (AOI) capabilities, is purpose-built to perform real-time dimensional measurement with exceptional speed and accuracy. By combining line scan imaging, precision lighting, and encoder-synchronized data capture, Intelgic ensures reliable detection of even the smallest deviations in sheet length, width, and edge alignment — all while operating at high throughput rates.

What sets Intelgic apart is their ability to design robust, scalable, and fully integrated solutions that not only meet current quality control standards but also adapt to evolving production needs. Intelgic’s AOI systems are built for seamless PLC integration, real-time feedback loops, and automated decision-making, enabling manufacturers to maintain tighter tolerances, reduce waste, and ensure product consistency.

In an era defined by Industry 4.0, Intelgic empowers metal fabricators and processors with intelligent automation that enhances operational efficiency, improves product quality, and delivers measurable ROI.

As manufacturing demands evolve, so must the tools used to maintain quality and precision. With Intelgic’s Machine Vision AOI system, steel sheet producers can achieve accurate, reliable, and real-time dimensional measurement during cut-to-length operations — ensuring every sheet meets the mark, every time.

Boost your production accuracy, reduce waste, and elevate your quality control with Intelgic.
